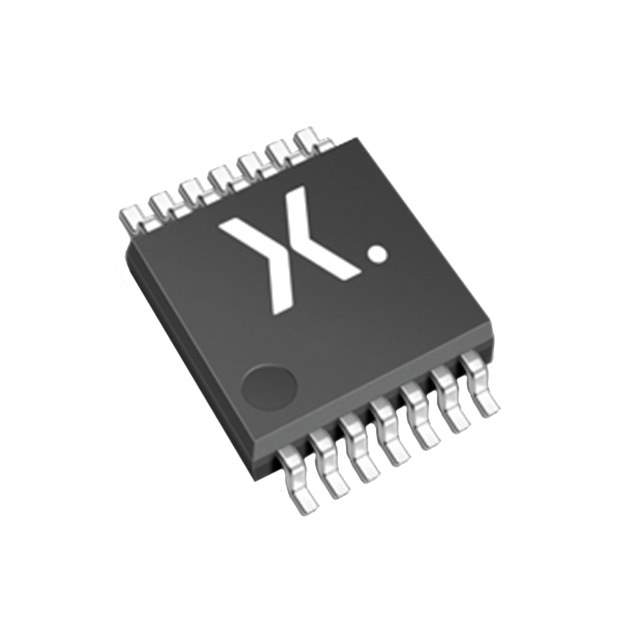

The 74AHC00PW-T is a high-speed Si-gate CMOS device and is pin compatible with Low-power Schottky TTL (LSTTL). It is fabricated with silicon gate C2MOS technology and designed to deliver exceptional performance in a wide range of applications. This integrated circuit is part of the 74AHC family, known for its high speed and low power consumption, making it an ideal choice for battery-powered and portable devices.

Key Features

• Logic Type: Quad 2-Input NAND Gate
• Package: TSSOP14, a thin shrink small outline package with 14 leads and body width of 4.4 mm.
• Operating Voltage: Ranges from 2.0V to 5.5V, accommodating a variety of logic level requirements and ensuring compatibility with both 3.3V and 5V systems.
• High Noise Immunity: Possesses a V_CC range of 1.2V to 5.5V.
• Low Power Consumption: 20 µA maximum ICC low static power consumption.
• High-Speed Performance: t_pd of 3.9 ns at V_CC of 5V.
• Latch-up Performance: Meets JESD78 Class II level B with a latch-up current of 250 mA.
• ESD Protection: HBM JESD22-A114F exceeds 2000V and MM JESD22-A115-A exceeds 200 V.

Applications

The versatile nature of the 74AHC00PW-T makes it suitable for a multitude of applications, including:

• Logic gates
• Function generators
• Control systems
• Embedded systems
• Signal processing

Quality and Reliability

NXP Semiconductors is committed to delivering products that meet the highest standards of quality and reliability. The 74AHC00PW-T is subject to rigorous testing throughout the manufacturing process to ensure its performance and durability. It is a testament to NXP's dedication to providing industry-leading solutions that can be relied upon in critical and demanding applications.
