Same model may have multiple batches, images only for reference.

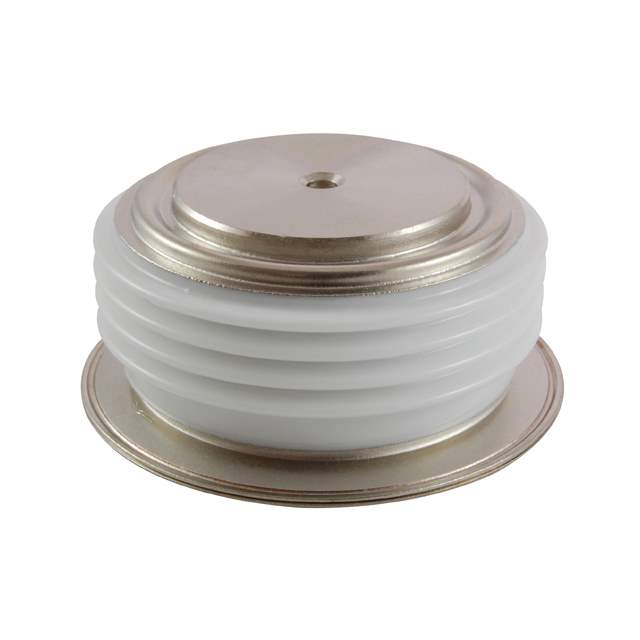

NTE6115 Real Image
Same model may have multiple batches, images only for reference.

NTE6115

Part No NTE6115
Manufacturer NTE
Catalog Diodes, Rectifiers - Single
Description R-1200PRV 1200A  /  Diode Standard 1200 V 1625A Chassis Mount DO-200AB
Datasheet
NTE6115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr NTE Electronics, Inc
Package Bag
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 1625A
Voltage - Forward (Vf) (Max) @ If 1.93 V @ 3770 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 30 mA @ 1200 V
Mounting Type Chassis Mount
Package / Case DO-200AB, B-PUK
Supplier Device Package DO-200AB
Operating Temperature - Junction -30°C ~ 175°C
ECCN EAR99
HTSUS 8541.10.0080
Other Names 2368-NTE6115
Standard Package 1
Win Source Part Number 1058026-NTE6115
Ultra Librarian 3D Model Ultra Librarian NTE6115 CAD Model

Description

This standard diode is a reliable and durable option for rectifiers in electronic applications. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Voltage Rating: 1200 V
  • Average Rectified Current: 1625A
  • Diode Type: Standard
  • Voltage Forward @ Maximum: 1.93 V @ 3770 A
  • Current Reverse Leakage @ Voltage Reverse: 30 mA @ 1200 V
  • Capacitance @ Voltage Reverse and Frequency: Not Specified
  • Operating Temperature Range: -30°C to 175°C
  • Mounting Type: Chassis Mount
  • Package/Case: DO-200AB, B-PUK
  • Supplier Device Package: DO-200AB
