Same model may have multiple batches, images only for reference.

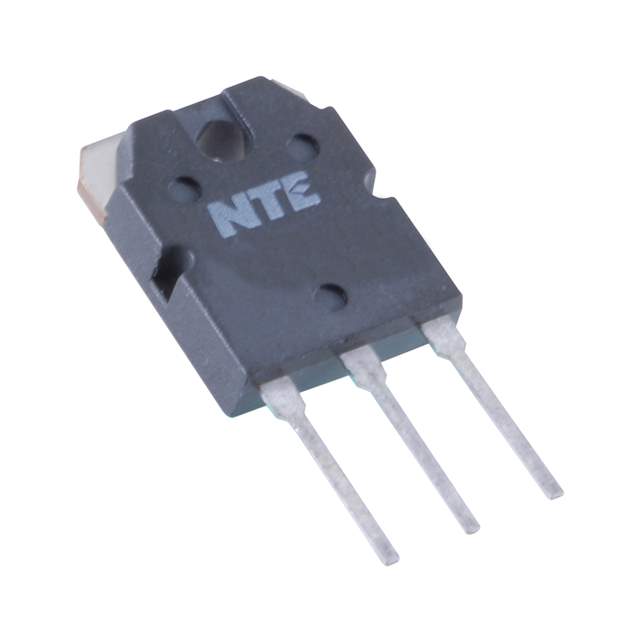

NTE6090 Real Image
Same model may have multiple batches, images only for reference.

NTE6090

Part No NTE6090
Manufacturer NTE
Catalog Diodes, Rectifiers - Arrays
Description R-DUAL SCHOTTKY 45V 30A  /  Diode Array 1 Pair Common Cathode Standard 45 V 15A Through Hole TO-3P-3, SC-65-3
Datasheet
NTE6090 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr NTE Electronics, Inc
Package Bag
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 45 V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 550 mV @ 15 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 1 mA @ 45 V
Operating Temperature - Junction -55°C ~ 150°C
Mounting Type Through Hole
Package / Case TO-3P-3, SC-65-3
Supplier Device Package TO-3P
ECCN EAR99
HTSUS 8541.10.0080
Other Names 2368-NTE6090
Standard Package 1
Win Source Part Number 1179831-NTE6090
Ultra Librarian 3D Model Ultra Librarian NTE6090 CAD Model

Description

The NTE6090 is a diode rectifier array component manufactured by NTE Electronics, Inc.

  • Diode Configuration: 1 Pair Common Cathode
  • Maximum DC Reverse Voltage: 45V
  • Forward Voltage: 550mV @ 15A
  • Reverse Leakage Current: 1mA @ 45V
  • Average Rectified Current: 15A
  • Mounting Type: Through Hole
