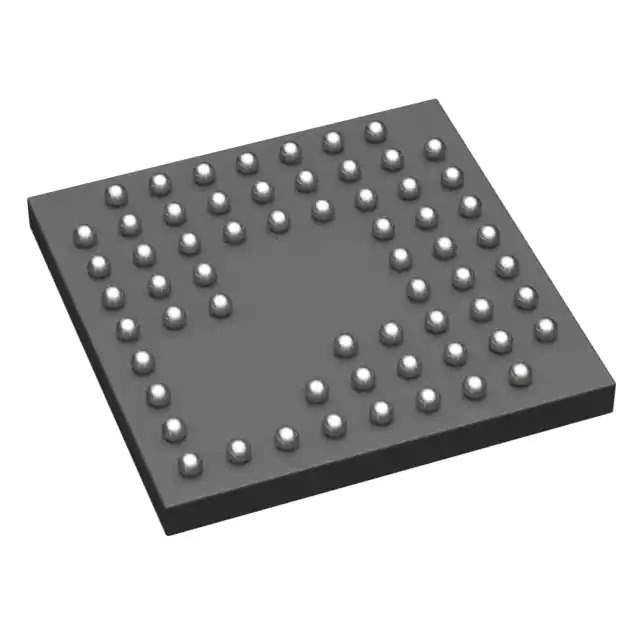

NRF51422-CEAA-R7 Real Image
Same model may have multiple batches, images only for reference.

NRF51422-CEAA-R7

Part No NRF51422-CEAA-R7
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description BLUETOOTH LOW ENERGY, ANT AND 2.
Datasheet
NRF51422-CEAA-R7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Nordic Semiconductors
Series nRF51
Package Tape & Reel
Product Status Active
Programmable Not Verified
Type TxRx Only
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Modulation GFSK
Frequency 2.4GHz
Data Rate (Max) 2Mbps
Power - Output 4dBm
Sensitivity -96dBm
Memory Size 256kB Flash, 16kB RAM
Serial Interfaces I2C, SPI, UART
GPIO 31
Voltage - Supply 1.8V ~ 3.6V
Current - Receiving 8.7mA ~ 13.4mA
Current - Transmitting 4.7mA ~ 16mA
Temperature Range - Operating -25°C ~ 75°C
Mounting Type Surface Mount
Package / Case 62-UFBGA, WLCSP
Supplier Device Package 62-WLCSP (3.5x3.83)
Base Product Number NRF51422
Standard Package 1,500 pcs
REACH Status REACH Unaffected
Win Source Part Number 1158255-NRF51422-CEAA-R7
Ultra Librarian 3D Model Ultra Librarian NRF51422-CEAA-R7 CAD Model

Description

The 1158255-NRF51422-CEAA-R7 is a RF transceiver IC that operates @ a frequency of 2.4GHz.

  • Frequency: 2.4GHz
  • Series: nRF51
  • Protocol: Bluetooth v4.1
  • Memory Size: 256kB flash and 16kB RAM
  • Data Rate: Up to 2Mbps
  • Serial Interfaces: I2C, SPI, and UART
  • GPIO Pins: 31
  • Voltage Supply: 1.8V to 3.6V
  • Package: Tape and reel
  • Status: Active
  • Manufacturer: Nordic Semiconductors
