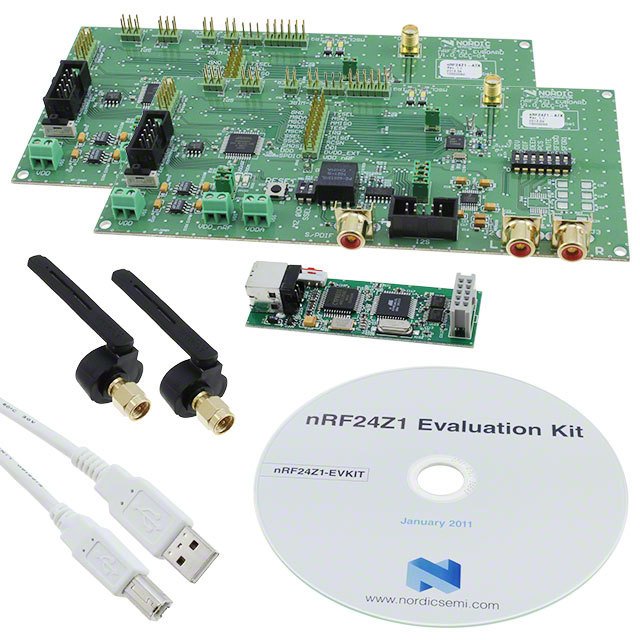

Same model may have multiple batches, images only for reference.
NRF24Z1-REEL Nordic Semiconductors
Same model may have multiple batches, images only for reference.

NRF24Z1-REEL

Part No NRF24Z1-REEL
Manufacturer Nordic Semiconductors
Catalog RF Transceiver ICs
Description IC RF TXRX ISM>1GHZ 36-VFQFN
Datasheet
NRF24Z1-REEL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Manufacturer Nordic Semiconductor ASA
Packaging Reel
Part Status Active
Type TxRx Only
RF Family/Standard General ISM > 1GHZ
Modulation GFSK
Frequency 2.4GHz
Data Rate (Max) 4Mbps
Power - Output 0dBm
Sensitivity -80dBm
Serial Interfaces I2C, I2S, SPI
Voltage - Supply 2 V ~ 3.6 V
Current - Receiving 19.5mA ~ 32mA
Current - Transmitting 14mA ~ 18mA
Temperature Range - Operating -20°C ~ 80°C
Case 36-VFQFN Exposed Pad
Win Source Part Number NRF24Z1-REEL-259445
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian NRF24Z1-REEL CAD Model

Description

The Nordic Semiconductor ASA NRF24Z1-REEL-259445 is a TxRx only type module with a frequency of 2.4GHz and a data rate (max) of 4Mbps.

  • Sensitivity: -80dBm
  • Power Output: 0dBm
  • Current Receiving: From 19.5mA to 32mA
  • Current Transmitting: From 14mA to 18mA
  • Modulation: GFSK
  • Serial Interfaces: I2C, I2S, and SPI
  • Voltage Supply: From 2V to 3.6V
  • Operating Temperature Range: From -20°C to 80°C
  • Application: Ideal for use in various RF/IF and RFID applications
