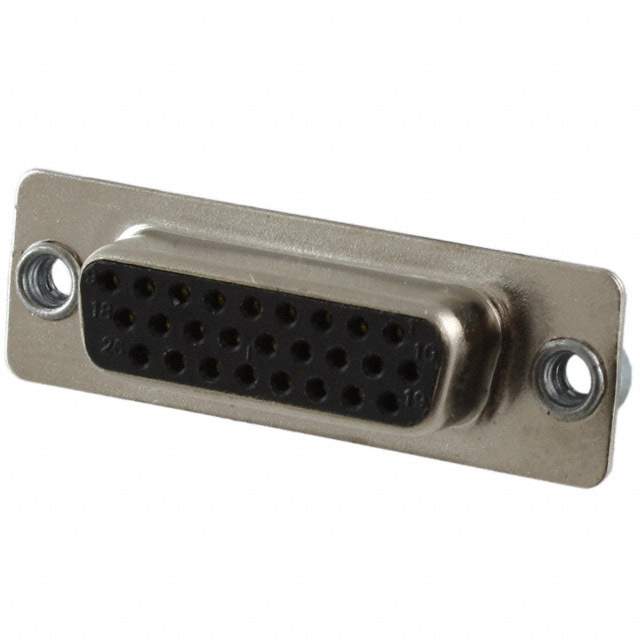

780-M26-203L011 Real Image
Same model may have multiple batches, images only for reference.

780-M26-203L011

Part No 780-M26-203L011
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD RCPT 26POS PNL MNT / 26 Position D-Sub, High Density Receptacle, Female Sockets Connector
Datasheet
780-M26-203L011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series Seal-D 780-M
Package Tray
Connector Style D-Sub, High Density
Connector Type Receptacle, Female Sockets
Number of Positions 26
Number of Rows 3
Mounting Type Panel Mount
Shell Size, Connector Layout 2 (DA, A) High Density
Contact Type Signal
Flange Feature Cable Side
Termination Solder Cup
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Color Black
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT) , Glass Filled
Wire Gauge 24-28 AWG
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 780-M26
Standard Package 70
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1339053-780-M26-203L011
Ultra Librarian 3D Model Ultra Librarian 780-M26-203L011 CAD Model

Description

The 780-M26-203L011 is a D-sub connector assembly from NorComp Inc.

  • Density: High Density
  • Number of Positions: 26
  • Number of Rows: 3
  • Color: Black
  • Connector Type: Receptacle, Female Socket
  • Contact Type: Signal
  • Termination: Solder Cup
  • Contact Finish: Gold, Flash Finish
  • Form: Machined
  • Wire Gauge: 24-28 AWG
  • Contact Material: Brass
  • Dielectric Material: Polybutylene Terephthalate (PBT), Glass-Filled
  • Ingress Protection: IP67
  • Material Flammability Rating: UL94 V-0
  • Shell Material/Finish: Steel, Nickel-Plated
  • Mounting Type: Panel Mount
  • Temperature Range: -55°C to 105°C
  • Current Rating: 5A
