Same model may have multiple batches, images only for reference.

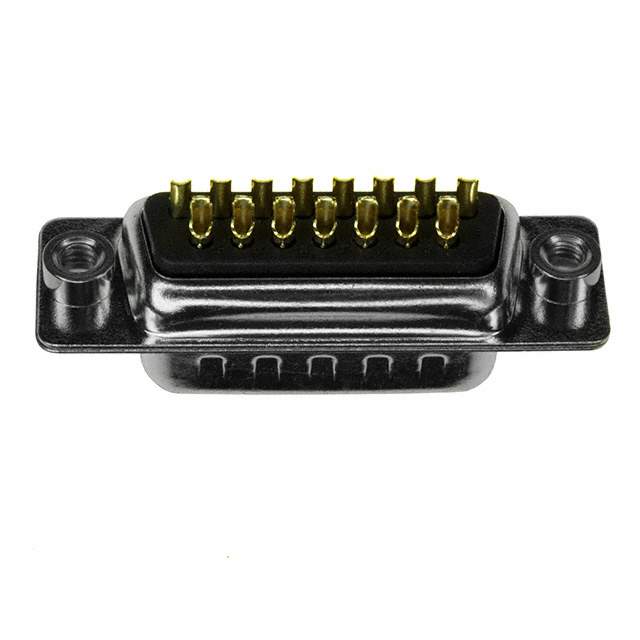

171-015-102L011 Real Image
Same model may have multiple batches, images only for reference.

171-015-102L011

Part No 171-015-102L011
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 15POS PNL MNT / 15 Position D-Sub Plug, Male Pins Connector
Datasheet
171-015-102L011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub, D-Shaped Connectors>D-Sub Connector Assemblies
Manufacturer NorComp Inc.
Packaging Tray
Product Status Obsolete
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 2
Mounting Panel Mount
Shell Size, Connector Layout 2 (DA, A)
Contact Type Signal
Flange Feature Cable Side (4-40)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Features Grounding Indents
Color Black
Contact Form Stamped
Dielectric Material Polybutylene Terephthalate (PBT), Glass Filled
Wire Gauge 20-28 AWG
Contact Material Copper Alloy
Temperature Range - Operating -50°C ~ 100°C
Base Product Number 171-015
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number 171015102L011,1215MER
Standard Package 60
Win Source Part Number 1333191-171-015-102L011
Ultra Librarian 3D Model Ultra Librarian 171-015-102L011 CAD Model

Description

The 1333191-171-015-102L011 is a 15-position, male, D-sub connector assembly from NorComp Inc.

  • Positions: 15
  • Gender: Male
  • Features: Grounding Indents
  • Number of Rows: Two
  • Termination: Solder Cup
  • Standard Package: 60
  • Obsolete: Yes
  • ROHS3 Compliant: Yes
  • REACH: Unaffected
