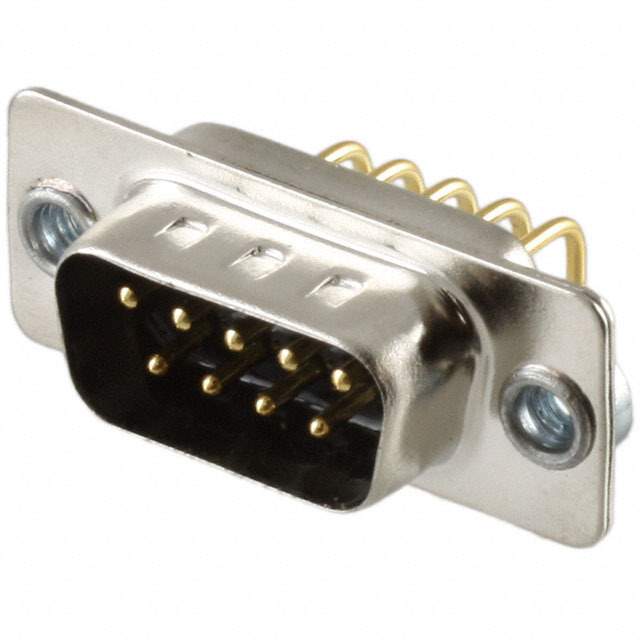

774-E09-113R011 Real Image
Same model may have multiple batches, images only for reference.

774-E09-113R011

Part No 774-E09-113R011
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 9POS R/A SLDR / 9 Position D-Sub Plug, Male Pins Connector
Datasheet
774-E09-113R011 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series Seal-D 774-E
Package Tray
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Backset Spacing 0.370" (9.40mm)
Features Grounding Indents
Color White
Contact Form Machined
Dielectric Material Polyamide (PA6T) , Nylon 6T
Contact Material Brass
Temperature Range - Operating -50°C ~ 100°C
Base Product Number 774-E09
Standard Package 110
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1351432-774-E09-113R011
Ultra Librarian 3D Model Ultra Librarian 774-E09-113R011 CAD Model

Description

The 1351432-774-E09-113R011 is a D-sub connector assembly with 9 positions and a white color.

  • Positions: 9
  • Color: White
  • Features: Grounding Indents
  • Connector Type: Plug
  • Contact Type: Male Pins (Signal)
  • Rows: 2
  • Termination: Solder
  • Contact Finish: Gold (Flash Thickness)
  • Harsh Environment: Yes
  • Ingress Protection: IP67 (Dust Tight and Waterproof)
  • Package: Tray
  • Mounting Type: Panel Mount, Through Hole, and Right Angle
  • Operating Temperature: -50°C to 100°C
