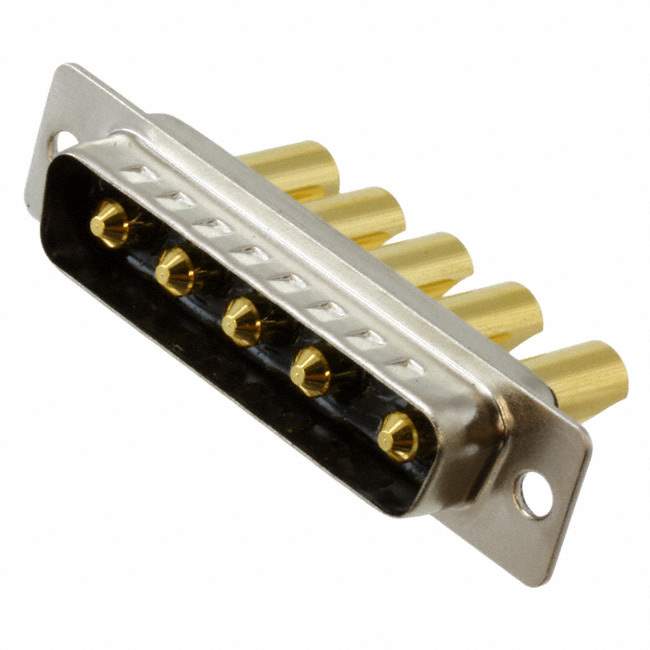

680S5W5103L401 Real Image
Same model may have multiple batches, images only for reference.

680S5W5103L401

Part No 680S5W5103L401
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 5POS PNL MNT / 5 (Power) Position D-Sub, Combo Plug, Male Pins Connector
Datasheet
680S5W5103L401 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series Seal-D 680S
Package Tray
Connector Style D-Sub, Combo
Connector Type Plug, Male Pins
Number of Positions 5 (Power)
Number of Rows 1
Mounting Type Panel Mount
Shell Size, Connector Layout 3 (DB, B) - 5W5
Contact Type Power
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP67 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-0
Current Rating (Amps) 40A
Features Grounding Indents
Color Black
Contact Form Machined
Dielectric Material Polybutylene Terephthalate (PBT)
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 155°C
Base Product Number 680S5W5
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1351106-680S5W5103L401
Ultra Librarian 3D Model Ultra Librarian 680S5W5103L401 CAD Model

Description

The Seal-D 680S series D-sub connector assembly is a high-quality product manufactured by NorComp Inc.

  • Series: Seal-D 680S
  • Connector Type: D-sub
  • Position: 5 (Power)
  • Connector Type: Plug
  • Pin Type: Male
  • Grounding: Grounding Indents
  • Contact Finish: Gold with Flash Finish Thickness
  • Ingress Protection: IP67
  • Flammability Rating: UL94 V-0
  • Current Rating: 40A
  • Application: D-sub, combo connector
  • Package: Tray
  • Mounting: Panel Mount
  • Temperature Range: -55°C to 155°C
