Same model may have multiple batches, images only for reference.

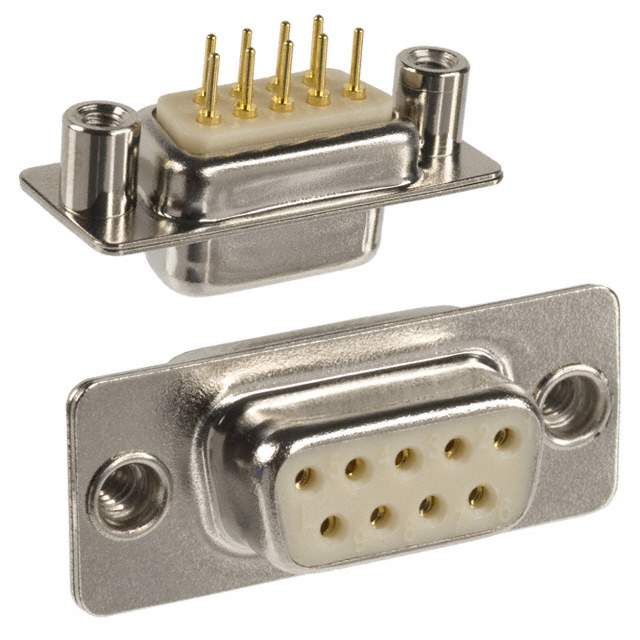

172-E09-213R021 Real Image
Same model may have multiple batches, images only for reference.

172-E09-213R021

Part No 172-E09-213R021
Manufacturer NorComp Inc.
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB RCPT 9P PNL MNT SLDR / 9 Position D-Sub Receptacle, Female Sockets Connector
Datasheet
172-E09-213R021 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr NorComp Inc.
Series 172-E, M Series
Package Tray
Connector Style D-Sub
Connector Type Receptacle, Female Sockets
Number of Positions 9
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 1 (DE, E)
Contact Type Signal
Flange Feature Board Side (4-40)
Termination Solder
Shell Material, Finish Steel, Nickel Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 5A
Color White
Contact Form Machined
Dielectric Material Polyamide (PA6T) , Nylon 6T
Contact Material Brass
Temperature Range - Operating -50°C ~ 100°C
Base Product Number 172-E09
Standard Package 80
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350956-172-E09-213R021
Ultra Librarian 3D Model Ultra Librarian 172-E09-213R021 CAD Model

Description

The NorComp Inc. 172-E09 D-sub connector assembly is a white receptacle with female sockets. 172-E09, NorComp Inc..

  • Connector Type: D-Sub Connector Assembly
  • Color: White
  • Gender: Receptacle, Female Sockets
  • Positions: 9
  • Series: M
  • Contact Type: Signal
  • Termination: Solder
  • Contact Finish Thickness: Flash (Gold)
  • Contact Form: Machined
  • Flange Feature: Board Side (4-40)
  • Shell Material: Steel, Nickel Plating
  • Dielectric Material: Polyamide (PA6T), Nylon 6T
  • Connector Layout: 1 (DE, E)
  • Mounting Type: Panel Mount, Through-Hole
  • Temperature Range: -50°C ~ 100°C
  • Current Rating: 5A
  • Status: Active
