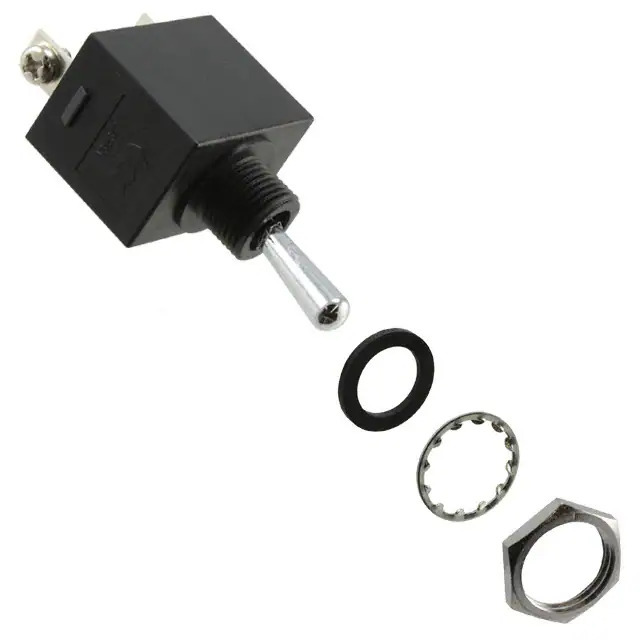

WT11T NKK Switches
Same model may have multiple batches, images only for reference.

WT11T

Part No WT11T
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPST 10A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series WT
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 10A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Screw Terminal
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Ingress Protection IP67 - Dust Tight, Waterproof
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 70°C
Actuator Material Brass, Chrome Plated
Electrical Life 15,000 Cycles
Base Product Number -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376003-WT11T
Ultra Librarian 3D Model Ultra Librarian WT11T CAD Model

Description

The WT11T toggle switch from NKK Switches is a high-quality component suitable for various applications.

  • Terminals: Epoxy-Sealed
  • Current Rating: 10A (AC/DC)
  • Voltage Rating: 125V (AC), 30V (DC)
  • Circuit: SPST
  • Switch Function: On-Off
  • Actuator Type: Standard Round
  • Actuator Material: Brass, Chrome Plated
  • Mounting Type: Panel Mount
  • Panel Cutout: 12.50mm Diameter
  • Electrical Life: 15,000 Cycles
  • REACH: Unaffected
  • ECCN: EAR99
