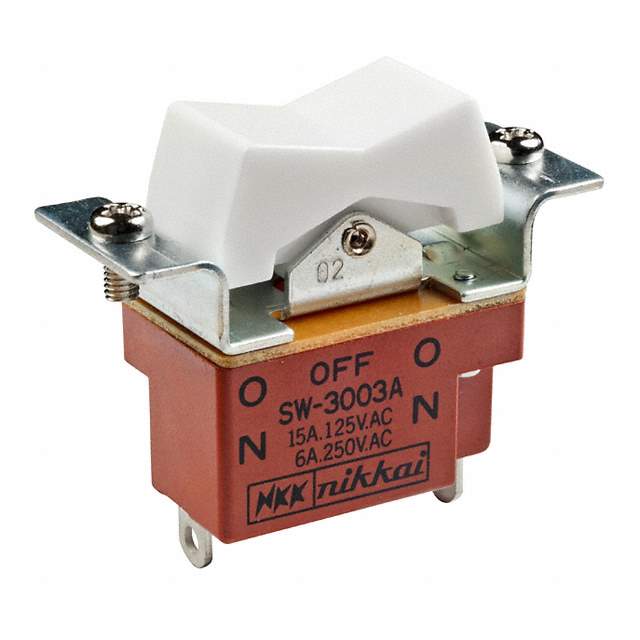

SW3003A Real Image
Same model may have multiple batches, images only for reference.

SW3003A

Part No SW3003A
Manufacturer NKK Switches
Catalog Rocker Switches
Description SWITCH ROCKER SPDT 15A 125V / Rocker Switch SPDT 15A (AC/DC) 125 V Panel Mount, Flange
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr NKK Switches
Series SW
Package Bulk
Mounting Type Panel Mount, Flange
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 15A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Concave (Standard V)
Color - Actuator/Cap White
Actuator Marking No Marking
Termination Style Solder Lug
Temperature Range - Operating -10°C ~ 70°C
Mechanical Life 50,000 Cycles
Electrical Life 25,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names SW3003A-RO,SW3003A-RO-ND,-SW3003A,-SW3003A-RO-ND,-SW3003A-RO
Standard Package 1
Win Source Part Number 1155335-SW3003A
Ultra Librarian 3D Model Ultra Librarian SW3003A CAD Model

Description

The NKK Switches SW-3003A is a high-quality rocker switch SPDT with a current rating of 15A (AC/DC).

  • Series: SW
  • Termination Style: Solder lug
  • Packaging: Bulk
  • Mounting: Panel flange
  • Ingress Protection: IP65
  • Voltage Rating: 125V AC and 30V DC
  • Electrical Life: 25,000 cycles
  • Mechanical Life: 50,000 cycles
  • Temperature Range: -10°C to 70°C
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.50.9065
