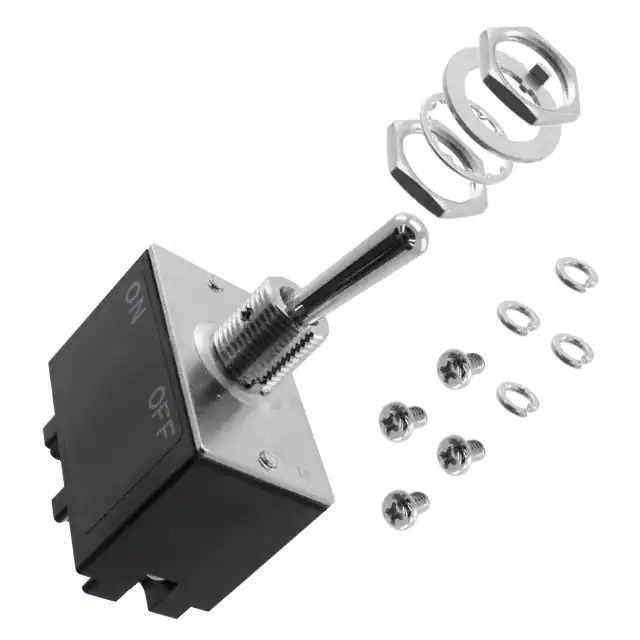

Same model may have multiple batches, images only for reference.

S821

Name: S821
Brand: NKK Switches
SKU: 1376023
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	S821
Manufacturer	NKK Switches
Catalog	Toggle Switches
Description	SWITCH TOGGLE DPST 30A 125V
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Toggle Switches
Mfr	NKK Switches
Series	S
Package	Bulk
Product Status	Active
Mounting Type	Panel Mount
Circuit	DPST
Switch Function	On-Off
Current Rating (Amps)	30A (AC/DC)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V
Actuator Type	Standard Round
Actuator Length	22.00mm
Illumination	Non-Illuminated
Illumination Type, Color	-
Illumination Voltage (Nominal)	-
Termination Style	Screw Terminal
Panel Cutout Dimensions	Circular - 12.50mm Dia
Bushing Thread	M12 x 1
Ingress Protection	-
Features	-
Temperature Range - Operating	-10°C ~ 70°C
Actuator Material	Brass, Chrome Plated
Electrical Life	25,000 Cycles
Base Product Number	-
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9065
Win Source Part Number	1376023-S821
Ultra Librarian 3D Model	Ultra Librarian S821 CAD Model

Description

The NKK Switches S series toggle switch is a high-quality electronic component designed for various applications.

Series: S
Current Rating (AC/DC): 30A (AC/DC)
Voltage Rating (AC): 125V AC
Voltage Rating (DC): 30V DC
Circuit: DPST
Switch Function: On-Off
Actuator Type: Standard Round
Actuator Material: Brass, Chrome Plated
Actuator Length: 22.00mm
Bushing Thread: M12 x 1
Termination Style: Panel Mount
Panel Cutout Dimensions: Circular, 12.50mm diameter
Electrical Life: 25,000 cycles
Illumination: Non-Illuminated
