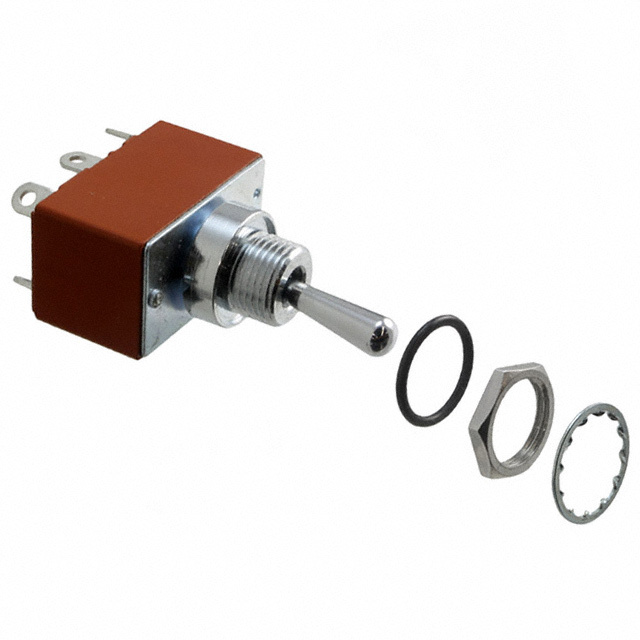

S41 NKK Switches – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

S41

Part No S41
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE 4PST 20A 125V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Panel Mount
Circuit 4PST
Switch Function On-Off
Current Rating (Amps) 20A (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Temperature Range - Operating -10°C ~ 70°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1565075-S41
Ultra Librarian 3D Model Ultra Librarian S41 CAD Model
