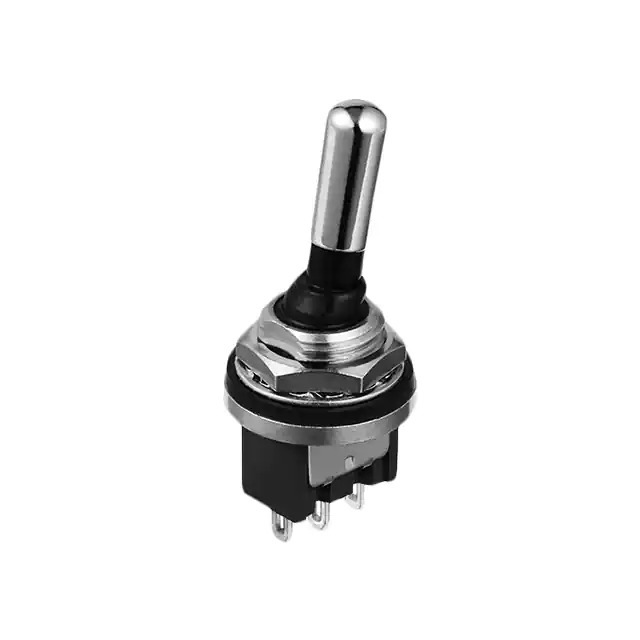

M2013WBW01 NKK Switches
Same model may have multiple batches, images only for reference.

M2013WBW01

Part No M2013WBW01
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 6A 125V / Toggle Switch SPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series M
Package Tray
Product Status Active
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-Off-On
Current Rating (Amps) 6A (AC), 3A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Standard Round
Actuator Length 20.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Ingress Protection IP67 - Dust Tight, Waterproof
Features Waterproof Boot
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number M2013WB
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376004-M2013WBW01
Ultra Librarian 3D Model Ultra Librarian M2013WBW01 CAD Model

Description

The M2013WBW01 toggle switch by NKK Switches is a waterproof component suitable for demanding environments.

  • Series: M
  • Mounting Type: Panel Mount
  • Current Rating: 6A (AC), 3A (DC)
  • IP Rating: IP67
  • Circuit: SPDT
  • Switch Function: On-Off-On
  • Voltage Rating: 125V (AC), 30V (DC)
  • Actuator Material: Brass, Chrome Plated
  • Actuator Length: 20.00mm
  • Bushing Thread: M12 x 1
