M2012LL4W01

Part No M2012LL4W01
Manufacturer NKK Switches
Catalog Toggle Switches
Description SWITCH TOGGLE SPDT 6A 125V / Toggle Switch SPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr NKK Switches
Series M
Package Bulk
Product Status Last Time Buy
Mounting Type Panel Mount
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 6A (AC), 4A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Locking Lever
Actuator Length 16.50mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 6.50mm Dia
Bushing Thread M6 x 0.75
Ingress Protection -
Features Epoxy Sealed Terminals
Temperature Range - Operating -30°C ~ 85°C
Actuator Material Brass, Chrome Plated
Electrical Life 25,000 Cycles
Base Product Number M2012LL
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376018-M2012LL4W01
Ultra Librarian 3D Model Ultra Librarian M2012LL4W01 CAD Model

Description

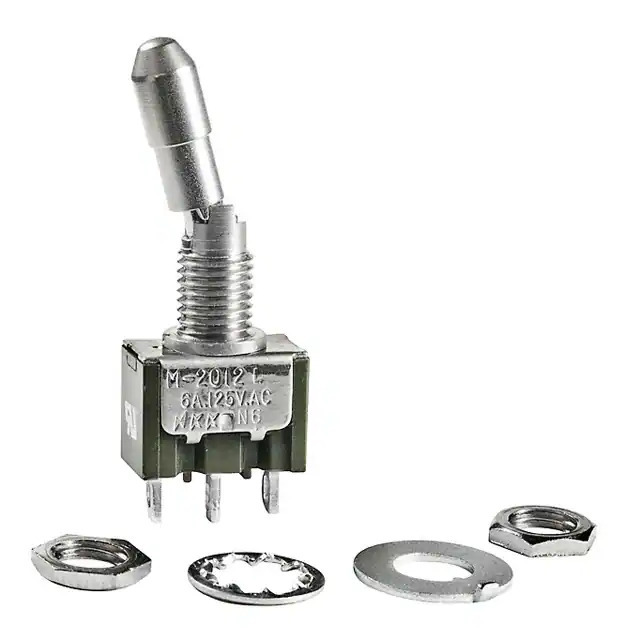

The NKK Switches M2012LL4W01 is a panel mount toggle switch.

  • Mounting Type: Panel Mount
  • Current Rating (AC): 6A (AC)
  • Current Rating (DC): 4A (DC)
  • Voltage Rating (AC): 125V (AC)
  • Voltage Rating (DC): 30V (DC)
  • Switch Function: On-On
  • Circuit: SPDT
  • Actuator Type: Locking Lever
  • Actuator Material: Brass, Chrome-Plated Material
  • Illumination: Non-Illuminated
  • Termination Style: Solder Lug
  • Panel Cutout Dimensions: Circular, 6.50mm diameter
  • Electrical Life: 25,000 cycles
  • Terminal Type: Epoxy Sealed
  • Operating Temperature: -30°C to 85°C
