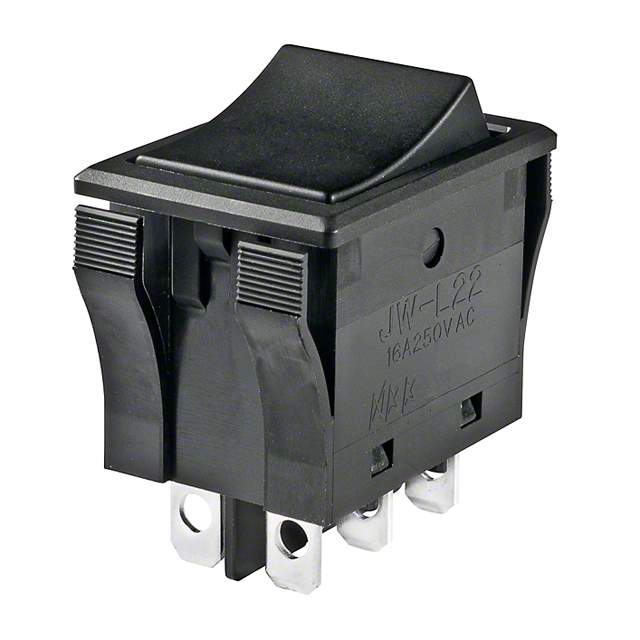

JWL22RAA/UCV Real Image
Same model may have multiple batches, images only for reference.

JWL22RAA/UCV

Part No JWL22RAA/UCV
Manufacturer NKK Switches
Catalog Rocker Switches
Description SWITCH ROCKER DPDT 16A 125V / Rocker Switch DPDT 16A (AC) 125 V Panel Mount, Snap-In
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr NKK Switches
Series JW
Package Bulk
Mounting Type Panel Mount, Snap-In
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 16A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style Solder, Quick Connect - 0.187" (4.7mm)
Ingress Protection Dust Proof
Features Epoxy Sealed Terminals
Panel Cutout Dimensions Rectangular - 29.50mm x 20.50mm
Temperature Range - Operating -25°C ~ 70°C
Mechanical Life 25,000 Cycles
Electrical Life 25,000 Cycles
Base Product Number JWL22R
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1337853-JWL22RAA/UCV
Ultra Librarian 3D Model Ultra Librarian JWL22RAA/UCV CAD Model

Description

The NKK Switches JW22RAA/UCV is a high-quality rocker switch DPDT with a current rating of 16A (AC).

  • Series: JW
  • Current Rating: 16A (AC)
  • Termination Style: Solder and Quick Connect - 0.187" (4.7mm)
  • Packaging: Bulk
  • Mounting Type: Snap-In Panel
  • Ingress Protection: Dust-Proof
  • Voltage Rating: 125V AC
  • Electrical Life: 25,000 Cycles
  • Mechanical Life: 25,000 Cycles
  • Operating Temperature: -25°C to 70°C
  • MSL: 1 (Unlimited)
  • HTSUS Code: 8536.50.9065
