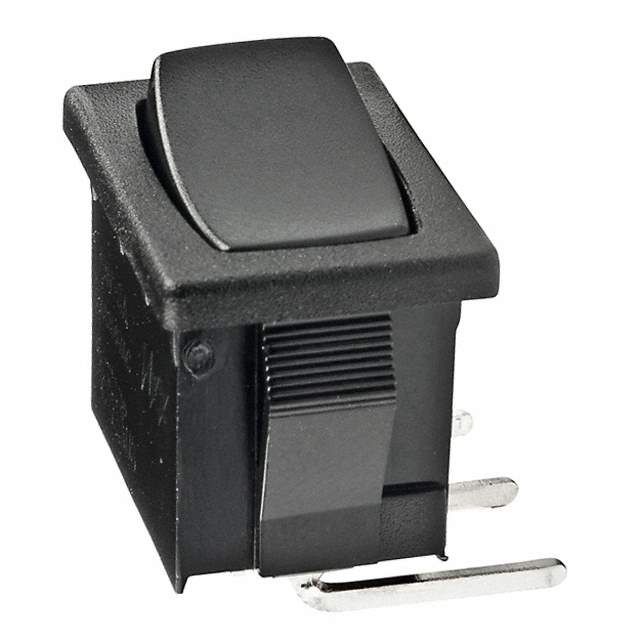

CWSA12AANH Real Image
Same model may have multiple batches, images only for reference.

CWSA12AANH

Part No CWSA12AANH
Manufacturer NKK Switches
Catalog Rocker Switches
Description SWITCH ROCKER SPDT 6A 250V / Rocker Switch SPDT 6A (AC) 250 V Panel Mount, Snap-In, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Rocker Switches
Mfr NKK Switches
Series CWSA
Package Tray
Mounting Type Panel Mount, Snap-In, Right Angle
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 6A (AC)
Voltage Rating - AC 250 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style PC Pin
Panel Cutout Dimensions Rectangular - 19.20mm x 12.90mm
Temperature Range - Operating -10°C ~ 70°C
Mechanical Life 30,000 Cycles
Electrical Life 10,000 Cycles
Base Product Number CWSA12AA
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1348692-CWSA12AANH
Ultra Librarian 3D Model Ultra Librarian CWSA12AANH CAD Model

Description

The CWSA12AANH is a rocker switch that belongs to the switches category, manufactured by NKK Switches.

  • Series: CWSA
  • Circuit: SPDT
  • Electrical Life: 10,000 cycles
  • Mechanical Life: 30,000 cycles
  • Current Rating: 6A (AC)
  • Voltage Rating: 250V AC
  • Mounting Type: Panel-mounted, snap-in, right-angled
  • Actuator Type: Concave (curved)
  • Actuator/Cap Color: Black
  • Package: Tray
  • REACH: Unaffected
