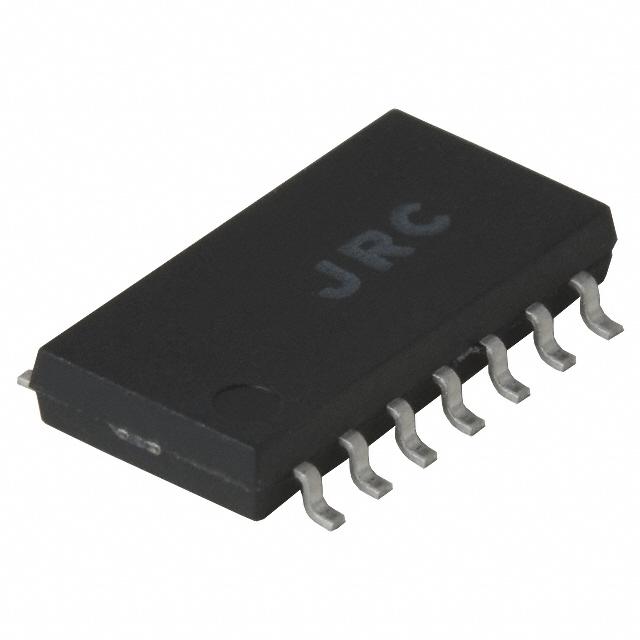

Same model may have multiple batches, images only for reference.
NJM2902MX NJR Corporation/NJRC
Same model may have multiple batches, images only for reference.

NJM2902MX

Part No NJM2902MX
Manufacturer NJR Corporation/NJRC
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 500KHZ 14DMP
Datasheet
NJM2902MX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits(ICs)
Family Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Manufacturer NJR-Corporation-NJRC
Packaging Tube
Amplifier Type General Purpose
Number of Circuits 4
Slew Rate 0.5 V/μs
Gain Bandwidth Product 500kHz
Current - Input Bias 20nA
Voltage - Input Offset 2mV
Current - Supply 1mA
Current - Output / Channel 40mA
Voltage - Supply, Single/Dual (±) 3 V ~ 30 V, ±1.5 V ~ 15 V
Operating Temperature Range -40°C ~ 85°C
Mounting Style SMD/SMT
Package 14-SOIC (0.209", 5.30mm Width)
Manufacturer Device Package 14-DMP
Win Source Part Number 003939-NJM2902MX
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NJM2902MX CAD Model

Description

The NJM2902MX is a general-purpose amplifier that is manufactured by NJR Corporation/NJRC. It is an integrated circuit that belongs to the Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps family. This product comes in a 14-SOIC (0.209", 5.30mm Width) package and has a 14-DMP manufacturer device package. The supply and demand status of this product is balanced.

  • Slew Rate: 0.5 V/μs
  • Gain Bandwidth Product: 500kHz
  • Current Supply: 1mA
  • Current Output: 40mA
  • Description: This product is ideal for use in general-purpose applications.
