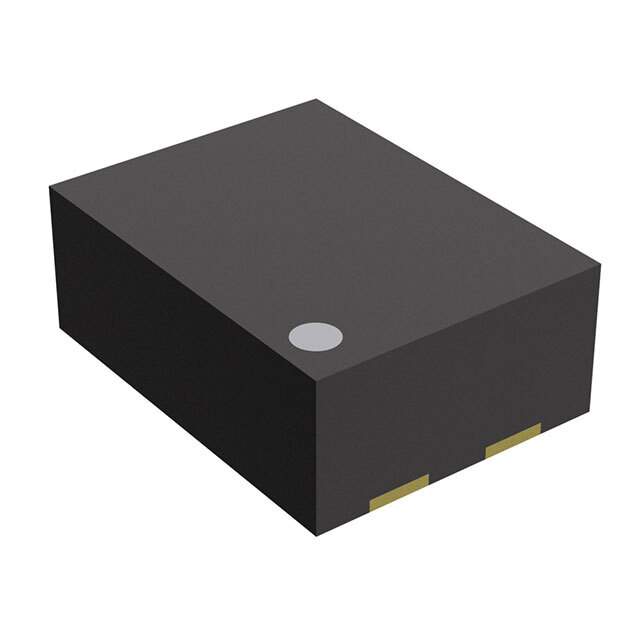

R5527K001C-TR Real Image1 R5527K001C-TR Real Image2
Same model may have multiple batches, images only for reference.
R5527K001C-TR Real Image1 R5527K001C-TR Real Image2
R5527K001C-TR Real Image1 R5527K001C-TR Real Image2
Same model may have multiple batches, images only for reference.

R5527K001C-TR

Part No R5527K001C-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH N-CH 1:1 DFN1612 / Power Switch/Driver 1:1 N-Channel 3A DFN(PL)1612-4D
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Power Management (PMIC)>Power Distribution Switches, Load Drivers
Mfr Nisshinbo Micro Devices Inc.
Series -
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 1
Output Configuration -
Output Type N-Channel
Interface -
Voltage - Load 1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 3A
Rds On (Typ) 48mOhm
Input Type Inverting
Features -
Fault Protection Reverse Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package DFN(PL)1612-4D
Package / Case 4-UFDFN Exposed Pad
Base Product Number R5527
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 5,000 pcs
Win Source Part Number 1383253-R5527K001C-TR
Ultra Librarian 3D Model Ultra Librarian R5527K001C-TR CAD Model

Description

The R5527K001C-TR from Nisshinbo Micro Devices Inc. is a power distribution switch and load driver integrated circuit.

  • Output Type: N-Channel
  • Input Type: Inverting
  • Maximum Output Current: 3A
  • On-Resistance: 48mOhm
  • Package Type: 4-UFDFN exposed pad
