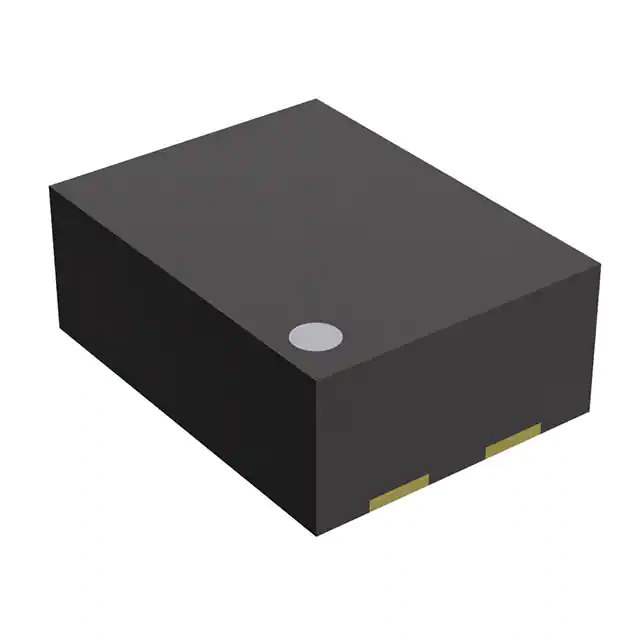

R5527K001B-TR Real Image
Same model may have multiple batches, images only for reference.

R5527K001B-TR

Part No R5527K001B-TR
Manufacturer Nisshinbo Micro Devices Inc.
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH N-CH 1:1 DFN1612
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Nisshinbo Micro Devices Inc.
Package Tape & Reel
Product Status Active
Switch Type General Purpose
Number of Outputs 1
Output Type N-Channel
Voltage - Load 1.8V ~ 5.5V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 3A
Rds On (Typ) 48mOhm
Input Type Inverting
Fault Protection Reverse Current
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package DFN(PL)1612-4D
Package / Case 4-UFDFN Exposed Pad
Base Product Number R5527
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 748505-R5527K001B-TR
Ultra Librarian 3D Model Ultra Librarian R5527K001B-TR CAD Model

Description

The R5527K001B-TR is a power distribution switch and load driver IC from Nisshinbo Micro Devices Inc.

  • Applications: General-purpose switching
  • Maximum Output Current: 3A
  • Output Type: N-channel
  • Input Type: Inverting
  • Package: 4-UFDFN exposed pad
  • On-Resistance: 48mOhm
  • Operating Temperature: -40°C to 85°C
  • External Voltage Supply: Not Required
