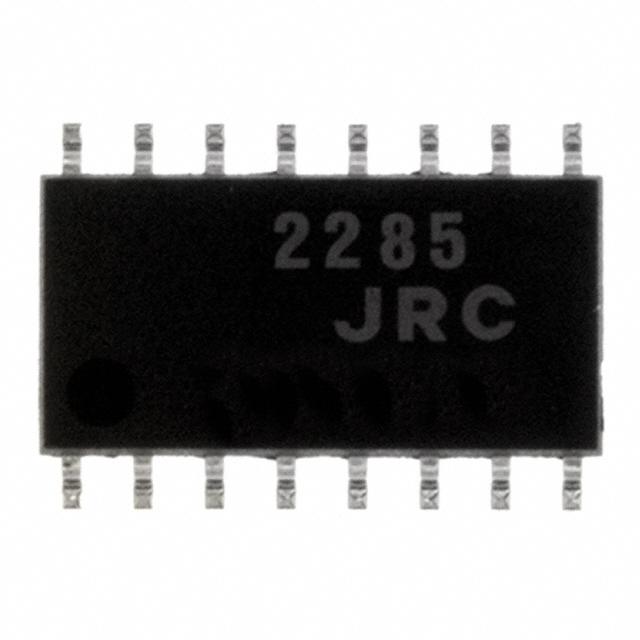

NJM2285M NJR Corporation/NJRC
Same model may have multiple batches, images only for reference.

NJM2285M

Part No NJM2285M
Manufacturer Nisshinbo Micro Devices Inc.
Catalog Linear - Video Processing
Description IC VIDEO SWITCH 2IN/1OUT 16DMP / Video Switch IC 16-DMP Package
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Linear - Video Processing
Mfr Nisshinbo Micro Devices Inc.
Package Tray
Product Status Obsolete
Function Switch
Applications Consumer Video
Voltage - Supply 4.75V ~ 13.0V
Mounting Type Surface Mount
Package / Case 16-SOIC (0.197", 5.00mm Width)
Supplier Device Package 16-DMP
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 254150-NJM2285M
Ultra Librarian 3D Model Ultra Librarian NJM2285M CAD Model

Description

The NJM2285M is a video processing integrated circuit designed for consumer video applications.

  • Function: It is suitable for various video switching and processing functions, providing high-quality video signals for display and recording devices.
  • Packaging: The NJM2285M is packaged in a tray format, ensuring easy handling and installation.
  • Voltage Supply: It operates with a wide voltage supply range of 4.75V to 13.0V, making it compatible with various power sources.
  • Status: Although it is an obsolete product, it still offers reliable video processing capabilities for legacy consumer video systems.
