Same model may have multiple batches, images only for reference.

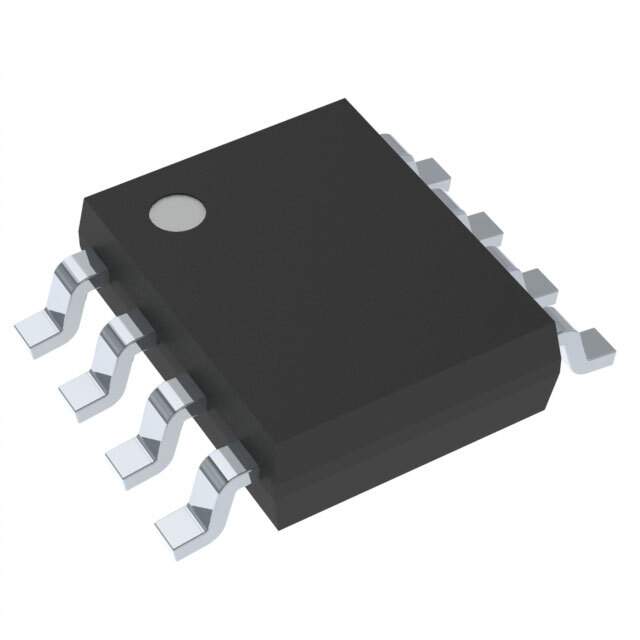

MUSES8920E Real Image
Same model may have multiple batches, images only for reference.

MUSES8920E

Part No MUSES8920E
Manufacturer Nisshinbo Micro Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC AUDIO 2 CIRCUIT 8SOP / Audio Amplifier 2 Circuit 8-SOP
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Linear>Amplifiers>Instrumentation, OP Amps, Buffer Amps
Manufacturer Nisshinbo Micro Devices Inc.
Packaging Tube
Product Status Obsolete
Amplifier Type Audio
Number of Circuits 2
Slew Rate 25V/µs
Gain Bandwidth Product 11 MHz
Current - Input Bias 5 pA
Voltage - Input Offset 800 µV
Current - Supply 9mA
Voltage - Supply Span (Min) 7 V
Voltage - Supply Span (Max) 34 V
Temperature Range - Operating -40°C ~ 125°C
Mounting Surface Mount
Case / Package 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package 8-SOP
Base Product Number MUSES8920
ECCN EAR99
HTSUS 8542.33.0001
Other Part Number 190-MUSES8920E,190-MUSES8920E-ND,2129-MUSES8920E
Standard Package 100
Win Source Part Number 1316691-MUSES8920E
Ultra Librarian 3D Model Ultra Librarian MUSES8920E CAD Model

Description

The Nisshinbo Micro Devices Inc. MUSES8920E is a dual audio amplifier that has a gain bandwidth product of 11 MHz and a slew rate of 25V/μs.

  • Manufacturer: Nisshinbo Micro Devices Inc.
  • Product Name: MUSES8920E
  • Type: Dual Audio Amplifier
  • Gain Bandwidth Product: 11 MHz
  • Slew Rate: 25V/μs
  • Input Bias Current: 5 pA
  • Input Offset Voltage: 800μV
  • Package: 8-SOP
