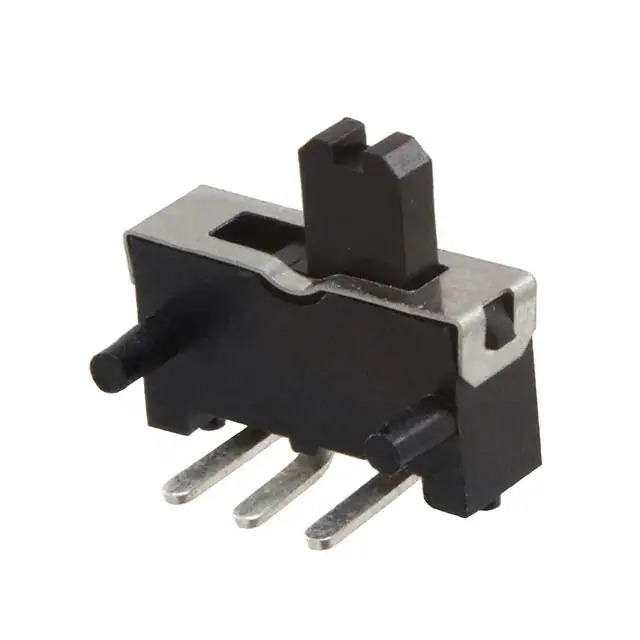

MFS101D-6-Z Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

MFS101D-6-Z

Part No MFS101D-6-Z
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE SPDT 300MA 10V
Datasheet
MFS101D-6-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series MFS
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 10 V
Actuator Type Standard
Actuator Length 3.30mm
Contact Material -
Contact Finish -
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features -
Temperature Range - Operating -10°C ~ 70°C
Actuator Material -
Switch Travel 2.50mm
Mechanical Life -
Electrical Life 5,000 Cycles
Operating Force 100 ~ 300gf
Base Product Number MFS101D
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376292-MFS101D-6-Z
Ultra Librarian 3D Model Ultra Librarian MFS101D-6-Z CAD Model

Description

The 1376292-MFS101D-6-Z is a slide switch from Nidec Components Corporation.

  • Series: MFS
  • Mounting Type: Through Hole, Right Angle
  • Temperature Range: -10°C to 70°C
  • Circuit Configuration: SPDT
  • Switch Function: On-On
  • Voltage Rating: 10V
  • Current Rating (DC): 300mA
  • Termination Style: PC Pin
  • Switch Travel: 2.50mm
  • Mechanical Life: 5,000 Cycles
  • Operating Force: 100-300gf
