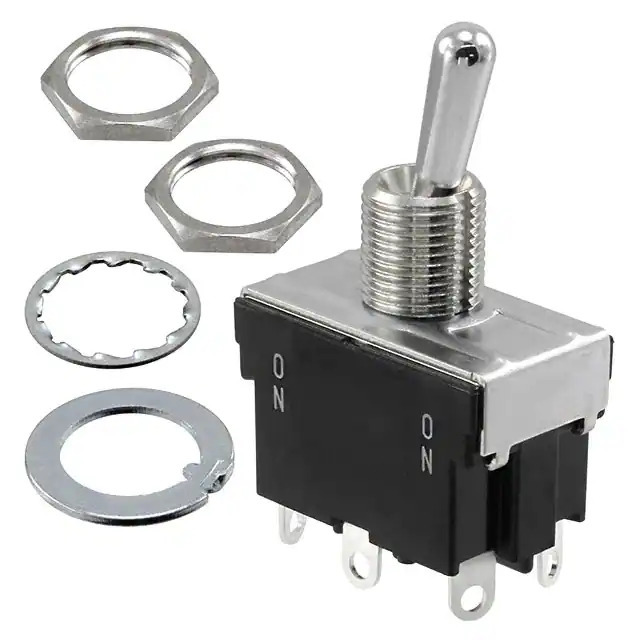

ET215N12-Z Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

ET215N12-Z

Part No ET215N12-Z
Manufacturer Nidec Copal Electronics
Catalog Toggle Switches
Description SWITCH TOGGLE DPDT 15A 125V / Toggle Switch DPDT Panel Mount
Datasheet
ET215N12-Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Toggle Switches
Mfr Nidec Components Corporation
Series ET
Package Bulk
Product Status Active
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-On
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Standard Round
Actuator Length 17.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 12.50mm Dia
Bushing Thread M12 x 1
Ingress Protection -
Features -
Actuator Material -
Electrical Life 30,000 Cycles
Base Product Number ET215N
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376028-ET215N12-Z
Ultra Librarian 3D Model Ultra Librarian ET215N12-Z CAD Model

Description

The Nidec Components Corporation ET215N12-Z is a DPDT toggle switch with a current rating of 15A (AC) and a voltage rating of 125V AC.

  • Circuit: DPDT
  • Current Rating (AC): 15A (AC)
  • Voltage Rating (AC): 125V AC
  • Actuator Type: Standard Round
  • Mounting Type: Panel Mount
  • Panel Cutout Dimensions: Circular, 12.50mm diameter
  • Mechanical Life: 30,000 cycles
  • Product Status: Active
