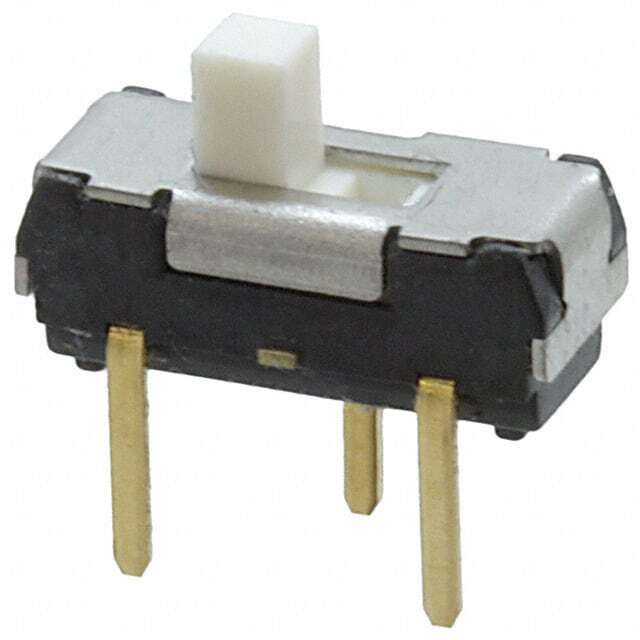

CL-SB-12C-02 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CL-SB-12C-02

Part No CL-SB-12C-02
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE SPDT 200MA 12V
Datasheet
CL-SB-12C-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series CL-SB
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 200mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper
Contact Finish Gold
Mounting Type Through Hole
Termination Style PC Pin
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 2.00mm
Mechanical Life -
Electrical Life 10,000 Cycles
Operating Force 153gf
Base Product Number CL-SB-12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376243-CL-SB-12C-02
Ultra Librarian 3D Model Ultra Librarian CL-SB-12C-02 CAD Model

Description

The Nidec Components Corporation CL-SB-12C-02 is a through-hole slide switch with a SPDT circuit configuration.

  • Voltage Rating: 12V DC
  • Current Rating: 200mA
  • Switch Function: On-On
  • Contact Finish: Gold
  • Actuator Type: Standard
  • Termination Style: PC Pin
  • Mechanical Life: 10,000 Cycles
  • Operating Force: 153gf
  • Temperature Range: -40°C to 85°C
