Same model may have multiple batches, images only for reference.

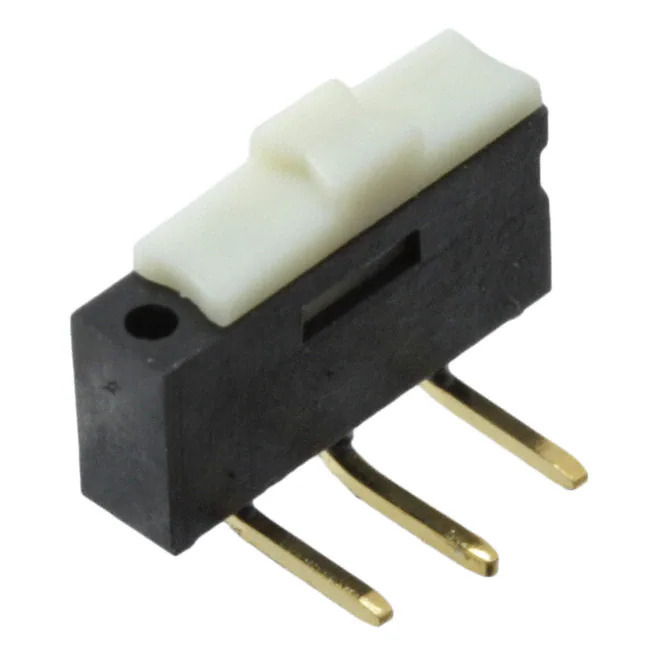

CL-SA-12C4-02 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CL-SA-12C4-02

Part No CL-SA-12C4-02
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE SPDT 500MA 12V
Datasheet
CL-SA-12C4-02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series CL-SA
Package Bulk
Product Status Active
Circuit SPDT
Contact Timing Non-Shorting (BBM)
Switch Function On-On
Current Rating (Amps) 500mA (DC)
Voltage Rating - DC 12 V
Actuator Type Standard
Actuator Length 1.40mm
Contact Material Gold (Au)
Contact Finish -
Mounting Type Through Hole, Right Angle
Termination Style PC Pin
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material -
Switch Travel 1.60mm
Mechanical Life 10,000 Cycles
Electrical Life 2,000 Cycles
Operating Force 255gf
Base Product Number CL-SA-12
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376274-CL-SA-12C4-02
Ultra Librarian 3D Model Ultra Librarian CL-SA-12C4-02 CAD Model

Description

The CL-SA-12C4-02 is a slide switch manufactured by Nidec Components Corporation.

  • Circuit Configuration: SPDT (Single Pole Double Throw)
  • Voltage Rating (DC): 12VDC
  • Current Rating (DC): 500mA (DC)
  • Switch Function: On-On
  • Actuator: Standard
  • Mechanical Life: 10,000 Cycles
  • Electrical Life: 2,000 Cycles
  • Mounting Type: Right Angle Through-Hole
  • Termination Style: PC Pin
  • Switch Travel: 1.60mm
  • Actuator Length: 1.40mm
  • Series: CL-SA
  • Packaging: Bulk
