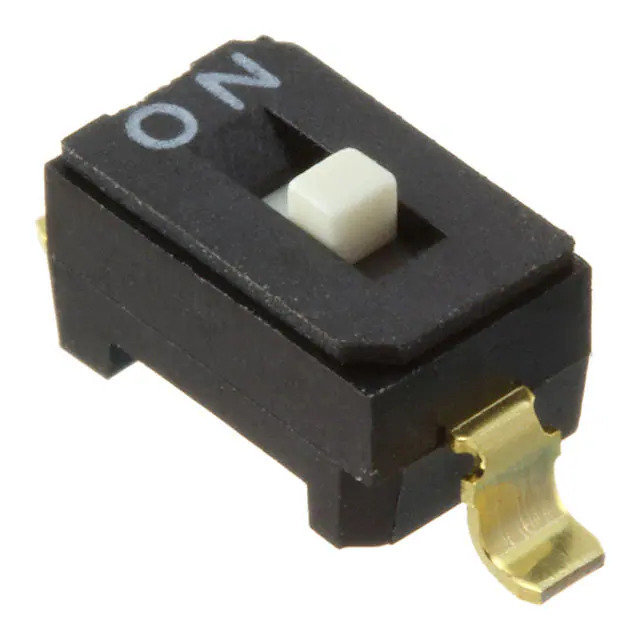

CFS-0102TB Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CFS-0102TB

Part No CFS-0102TB
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH DIP 1POS SPST 100MA 6V
Datasheet
CFS-0102TB Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Components Corporation
Series CFS
Package Tape & Reel
Product Status Active
Circuit SPST
Number of Positions 1
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.169" (4.30mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable No
Features -
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.156" (3.96mm)
Mechanical Life -
Electrical Life 1,000 Cycles
Base Product Number CFS-0102
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376385-CFS-0102TB
Ultra Librarian 3D Model Ultra Librarian CFS-0102TB CAD Model

Description

The CFS-0102TB is a DIP switch from Nidec Components Corporation.

  • Switch Type: SPST
  • Actuator Type: Slide
  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Termination Style: Gull Wing
  • Mounting Type: Surface Mount
  • Pitch: 0.100" (2.54mm)
  • Height Above Board: 0.169" (4.30mm)
  • Material: Polyphenylene Sulfide (PPS)
  • Actuator Level: Raised
  • Mechanical Life: 1,000 Cycles
