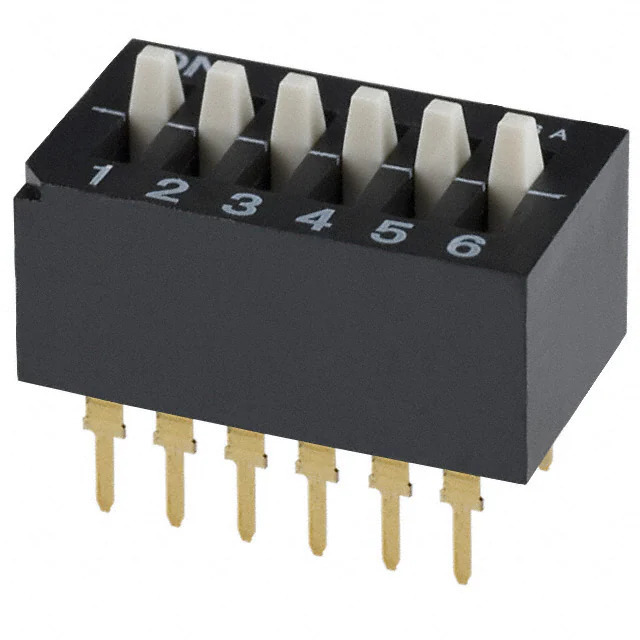

CES-0602MC Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CES-0602MC

Part No CES-0602MC
Manufacturer Nidec Copal Electronics
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 100MA 6V
Datasheet
CES-0602MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Nidec Components Corporation
Series CES
Package Tape & Box (TB)
Product Status Active
Circuit SPST
Number of Positions 6
Current Rating (Amps) 100mA
Voltage Rating 6VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.472" (12.00mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Features -
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.702" (17.82mm)
Mechanical Life -
Electrical Life 1,000 Cycles
Base Product Number CES-0602
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1376400-CES-0602MC
Ultra Librarian 3D Model Ultra Librarian CES-0602MC CAD Model

Description

The CES-0602MC is a DIP switch from Nidec Components Corporation.

  • Positions: 6
  • Actuator Type: Slide
  • Termination Style: Through Hole
  • Current Rating: 100mA
  • Voltage Rating: 6VDC
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Body Material: Polyphenylene Sulfide (PPS)
  • Height Above Board: 0.472" (12.00mm)
  • Length: 0.702" (17.82mm)
