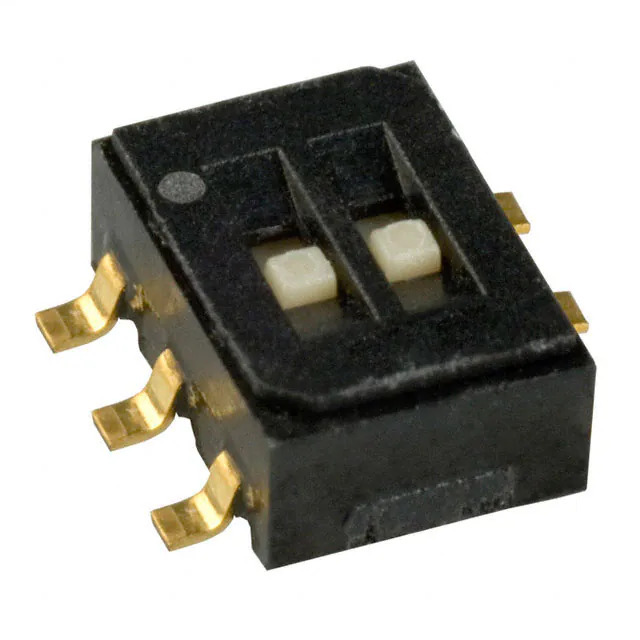

CAS-D20TB1 Nidec Copal Electronics
Same model may have multiple batches, images only for reference.

CAS-D20TB1

Part No CAS-D20TB1
Manufacturer Nidec Copal Electronics
Catalog Slide Switches
Description SWITCH SLIDE SPDTX2 100MA 6V
Datasheet
CAS-D20TB1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr Nidec Components Corporation
Series CAS
Package Tape & Reel
Product Status Active
Circuit SPDT x 2
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 100mA (DC)
Voltage Rating - DC 6 V
Actuator Type Flush
Actuator Length Flush
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Surface Mount
Termination Style Gull Wing
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.60mm
Mechanical Life -
Electrical Life 2,000 Cycles
Operating Force 51 ~ 510gf
Base Product Number CAS-D20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376336-CAS-D20TB1
Ultra Librarian 3D Model Ultra Librarian CAS-D20TB1 CAD Model

Description

The CAS-D20TB1 is a surface mount slide switch manufactured by Nidec Components Corporation.

  • Circuit: Double-pole double-throw (DPDT)
  • Voltage Rating (DC): 6VDC
  • Current Rating: 100mA
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Termination Style: Gull Wing
  • Actuator Type: Flush
  • Switch Travel: 0.60mm
  • Operating Force: 51gf to 510gf
  • Electrical Life: 2,000 cycles
  • Actuator Material: Polyamide (PA) and nylon
  • Product Status: Active
  • Series: CAS
