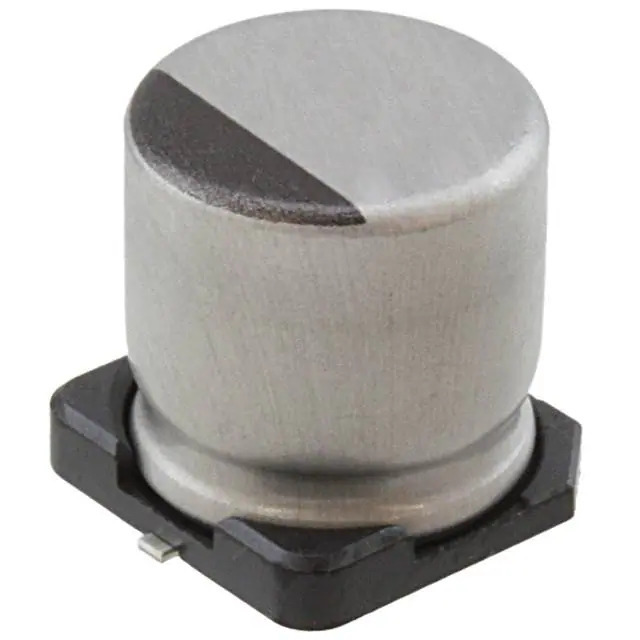

Same model may have multiple batches, images only for reference.
UWZ1H221MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UWZ1H221MCL1GS

Part No UWZ1H221MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 50V SMD / 220 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C
Datasheet
UWZ1H221MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWZ
Package Tape & Reel
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications High Temperature Reflow
Ripple Current @ Low Frequency 220 mA @ 120 Hz
Ripple Current @ High Frequency 330 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360381-UWZ1H221MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWZ1H221MCL1GS CAD Model

Description

The UWZ1H221MCL1GS is an aluminum electrolytic capacitor from Nichicon. UWZ1H221MCL1GS is from Nichicon.

  • Series: UWZ
  • Design: High-Temperature Reflow
  • Capacitance: 220 μF
  • Voltage Rating: 50 V
  • Temperature Range: -55°C to 105°C
  • Package: Radial, Can-SMD
  • Size (Diameter): 0.394"
  • Height: 0.394"
  • Lifetime: 1000 hours @ 105°C
  • Ripple Current (Low Frequency): 220 mA @ 120 Hz
  • Ripple Current (High Frequency): 330 mA @ 10 kHz
  • Product Status: Active
