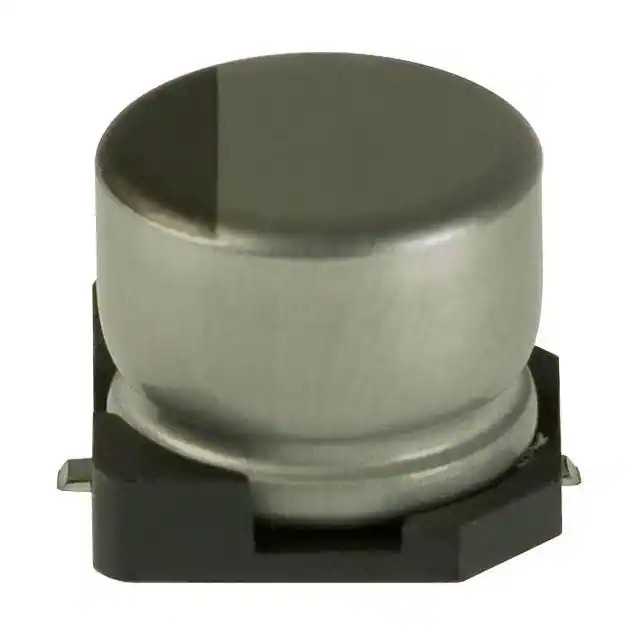

UWX1A101MCL1GB Nichicon
Same model may have multiple batches, images only for reference.

UWX1A101MCL1GB

Part No UWX1A101MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 10V SMD / 100 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWX
Package Tape & Reel
Product Status Last Time Buy
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 76 mA @ 120 Hz
Ripple Current @ High Frequency 114 mA @ 10 kHz
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.213" (5.40mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360154-UWX1A101MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWX1A101MCL1GB CAD Model

Description

The UWX1A101MCL1GB is a radial, surface mount aluminum electrolytic capacitor from Nichicon.

  • Series: UWX series
  • Capacitance: 100 μF
  • Voltage Rating: 10 V
  • Applications: General Purpose
  • Temperature Range: -40°C to 85°C
  • Lifetime: 2000 hours @ 85°C
  • Diameter: 0.248"
  • Height: 0.213"
  • Mounting Type: Surface Mount
  • Packaging: Tape and Reel
  • ESR: Low
  • Ripple Current @ Low Frequency: 76 mA @ 120 Hz
  • Ripple Current @ High Frequency: 114 mA @ 10 kHz
  • REACH: Unaffected
  • ECCN: EAR99
