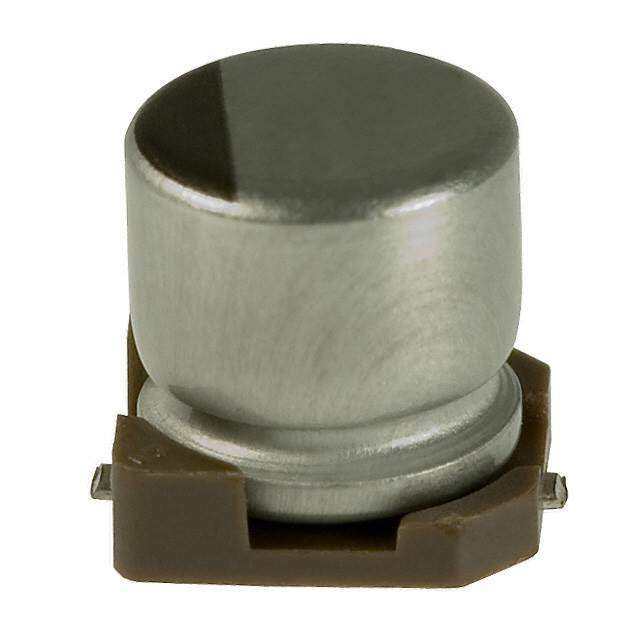

Same model may have multiple batches, images only for reference.

UWT1C220MCL1GB

Name: UWT1C220MCL1GB
Brand: Nichicon
SKU: 810472
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UWT1C220MCL1GB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 16V SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nichicon
Packaging	Reel
Capacitance	22μF
Tolerance	±20%
Voltage - Rated	16V
Lifetime at Temp.	1000 Hrs at 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	Use For General
Ripple Current at Low Frequency	30mA at 120Hz
Ripple Current at High Frequency	45mA at 10kHz
Dimension	0.197" Dia (5.00mm)
Height - Seated (Maximum)	0.213" (5.40mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Style	SMD
Manufacturer Package	Radial, Can - SMD
Manufacturer Pack Quantity	1,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	810475-UWT1C220MCL1GB
Ultra Librarian 3D Model	Ultra Librarian UWT1C220MCL1GB CAD Model

Description

The Nichicon UWT1C220MCL1GB is a surface mount aluminum electrolytic capacitor with a capacitance of 22μF and a voltage rating of 16V.

Capacitance: 22μF
Voltage Rating: 16V
Tolerance: ±20%
Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Manufacturer Package: Radial, Can - SMD
Height: 0.213" (5.40mm)
Temperature Range: -55°C to 105°C
Ripple Current @ 120Hz: 30mA
Ripple Current @ 10kHz: 45mA
Packaging: Reel
Supply and Demand Status: Limited
