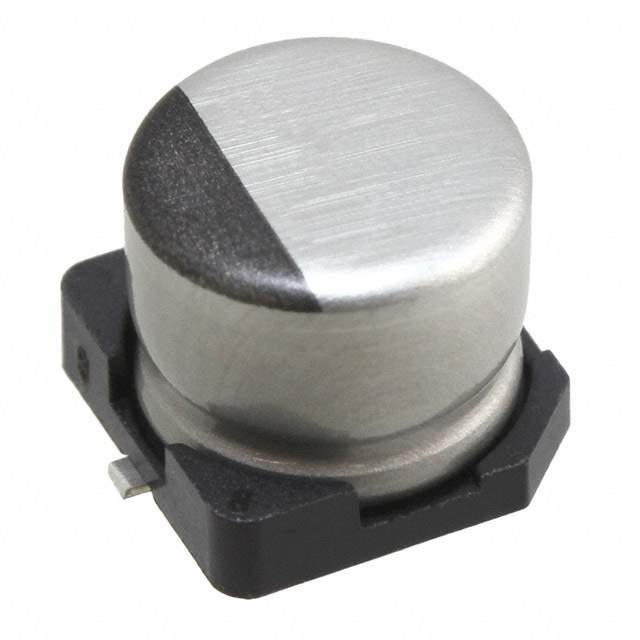

UWJ1C101MCL1GB Real Image
Same model may have multiple batches, images only for reference.

UWJ1C101MCL1GB

Part No UWJ1C101MCL1GB
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 16V SMD / 100 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 85°C
Datasheet
UWJ1C101MCL1GB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWJ
Package Tape & Reel
Product Status Last Time Buy
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 86 mA @ 120 Hz
Ripple Current @ High Frequency 129 mA @ 10 kHz
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1351864-UWJ1C101MCL1GB
Ultra Librarian 3D Model Ultra Librarian UWJ1C101MCL1GB CAD Model

Description

The Nichicon UWJ Aluminum Electrolytic Capacitor is an excellent option for general-purpose applications.

  • Capacitance: 100μF
  • Voltage Rating: 16V
  • Capacitance Tolerance: ±20%
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Temperature Range: -40°C to 85°C
  • Lifetime: 2000 hours @ 85°C
  • Package: Radial, Can - SMD
  • Packaging: Tape and Reel
