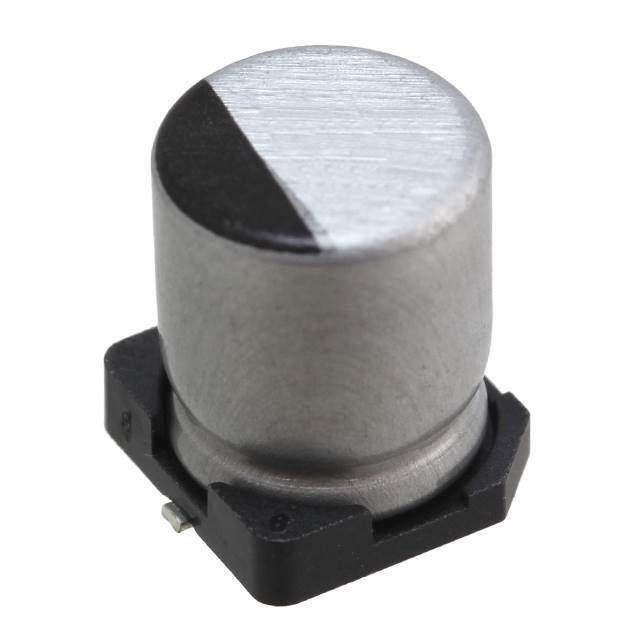

UWD1V560MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWD1V560MCL1GS

Part No UWD1V560MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 56UF 20% 35V SMD / 56 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UWD1V560MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 280 mA @ 100 kHz
Impedance 340 mOhms
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.303" (7.70mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 900
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1350241-UWD1V560MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1V560MCL1GS CAD Model

Description

The Nichicon UWD series aluminum electrolytic capacitors are designed for general-purpose applications.

  • Capacitance: 56µF
  • Voltage Rating: 35V
  • Tolerance: ±20%
  • Standard Package: 900
  • Mounting Type: Surface Mount
  • Ripple Current: 140mA @ 120Hz
  • Impedance: 340mOhms
  • Lifetime: 2000 Hours @ 105°C
  • Polarized: Yes
  • Surface Mount Land Size: 0.260” L x 0.260” W (6.60mm x 6.60mm)
  • Operating Temperature Range: -55°C to 105°C
