Same model may have multiple batches, images only for reference.

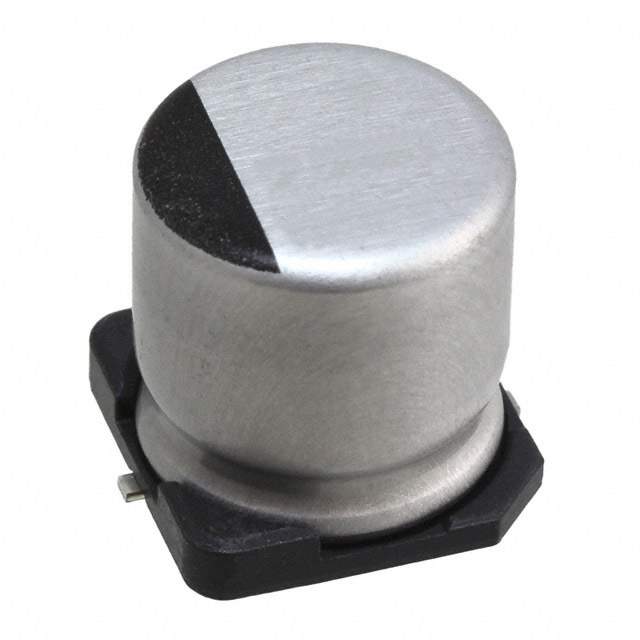

UWD1V331MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWD1V331MCL1GS

Part No UWD1V331MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 35V SMD / 330 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Datasheet
UWD1V331MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 335 mA @ 120 Hz
Ripple Current @ High Frequency 670 mA @ 100 kHz
Impedance 90 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UWD1V331MCL1GS-ND,493-9692-2,493-9692-1,493-9692-6
Standard Package 500
Win Source Part Number 1028695-UWD1V331MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1V331MCL1GS CAD Model

Description

The UWD1V331MCL1GS by Nichicon is a radial, can - SMD aluminum electrolytic capacitor that is widely used for general purpose applications.

  • Capacitance: 330 µF
  • Voltage Rating: 35V
  • Temperature Range: -55°C to 105°C
  • Series: UWD series
  • Design: Polarization
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Packaging: Tape and Reel
  • Standard Package: 500 units
  • Impedance: 90 mOhms
  • Ripple Current: 335 mA @ 120 Hz and 670 mA @ 100 kHz
  • RoHS Compliant: Yes
