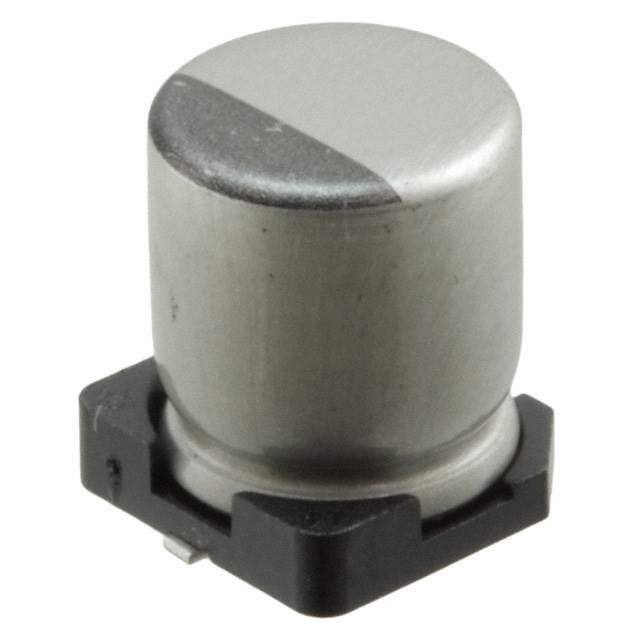

UWD1A221MCL1GS Real Image
Same model may have multiple batches, images only for reference.

UWD1A221MCL1GS

Part No UWD1A221MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 10V SMD / 220 µF 10 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UWD1A221MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UWD
Package Tape & Reel
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 10 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 140 mA @ 120 Hz
Ripple Current @ High Frequency 280 mA @ 100 kHz
Impedance 340 mOhms
Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 493-6285-1,493-6285-2,UWD1A221MCL1GS-ND,493-6285-6
Standard Package 900
Win Source Part Number 1167664-UWD1A221MCL1GS
Ultra Librarian 3D Model Ultra Librarian UWD1A221MCL1GS CAD Model

Description

The UWD1A221MCL1GS is a radial, can - SMD aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 220μF
  • Voltage Rating: 10V
  • Tolerance: ±20%
  • Impedance: 340 mOhms
  • Application: General Purpose
  • Surface Mount Land Size: 0.260 inches L x 0.260 inches W (6.60mm x 6.60mm)
  • Ripple Current: 140 mA @ 120 Hz
  • Ripple Current: 280 mA @ 100 kHz
  • Dimension: 0.248 inches Dia (6.30mm)
  • Mounting Technology: Surface Mount Technology (SMT)
  • Supply and Demand Status: Balanced
