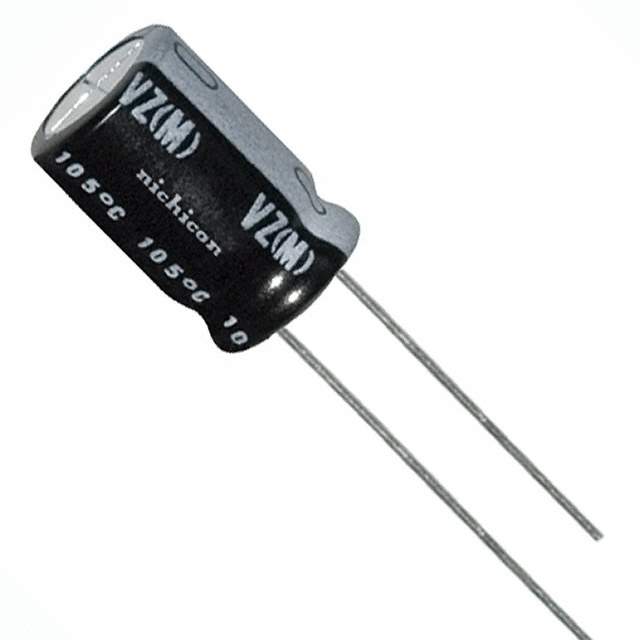

Same model may have multiple batches, images only for reference.

UVZ2G3R3MPD

Name: UVZ2G3R3MPD
Brand: Nichicon
SKU: 777883
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVZ2G3R3MPD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 3.3UF 20% 400V RADIAL / Cap Aluminum Lytic 3.3uF 400V 20% (10 X 12.5mm) Radial 5mm 38mA 1000h 105°C Bulk
Datasheet	UVZ2G3R3MPD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	UVZ
Packaging	Bulk
Capacitance	3.3μF
Tolerance	±20%
Voltage Rating DC	400V
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature Range	-40°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	38mA @ 120Hz
Ripple Current - High Frequency	60.8mA @ 10kHz
Lead Spacing	0.197" (5.00mm)
Dimension	0.394" Dia (10.00mm)
Height - Seated (Maximum)	0.492" (12.50mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	777883-UVZ2G3R3MPD
Popularity	Medium
Supply and Demand Status	Limited
Family Name	UVZ
Introduction Date	September 12, 2003
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian UVZ2G3R3MPD CAD Model

Description

The Nichicon UVZ2G3R3MPD is a radial, can-type capacitor with a capacitance of 3.3μF and a voltage rating of 400V.

Capacitance: 3.3μF
Voltage Rating: 400V
Tolerance: ±20%
Ripple Current: 38mA @ 120Hz
Ripple Current: 60.8mA @ 10kHz
Height: 0.492 inches
Diameter: 0.394 inches
Polarized: Yes
Lifetime: 1000 hours @ 105°C
Applications: General
