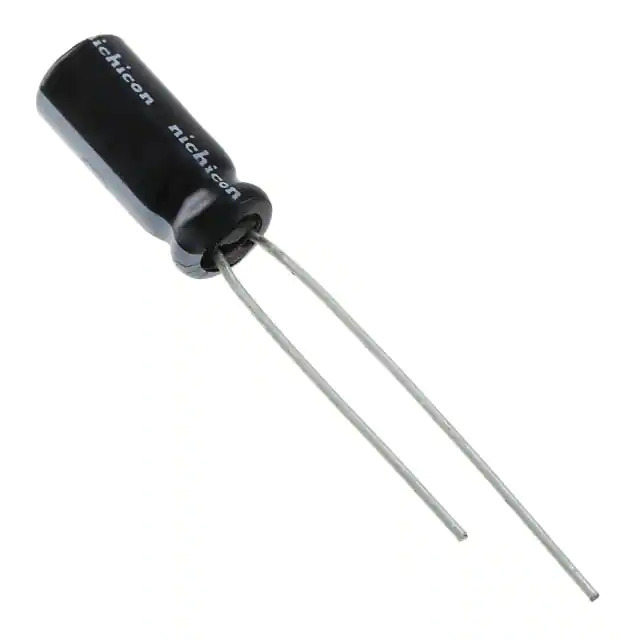

Same model may have multiple batches, images only for reference.

UVZ2A4R7MDD

Name: UVZ2A4R7MDD
Brand: Nichicon
SKU: 1358100
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UVZ2A4R7MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 4.7UF 20% 100V RADIAL / 4.7 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet	UVZ2A4R7MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVZ
Package	Bulk
Product Status	Obsolete
Capacitance	4.7 µF
Tolerance	±20%
Voltage - Rated	100 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	32 mA @ 120 Hz
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358100-UVZ2A4R7MDD
Ultra Librarian 3D Model	Ultra Librarian UVZ2A4R7MDD CAD Model

Description

The Nichicon UVZ series capacitor is an aluminum electrolytic capacitor with a capacitance of 4.7 μF and a voltage rating of 100 V.

Capacitance: 4.7 μF
Voltage - Rated: 100 V
Tolerance: ±20%
Applications: General Purpose
Ripple Current @ Low Frequency: 32 mA @ 120 Hz
Lead Spacing: 0.079" (2.00mm)
Size / Dimension: 0.197" Dia (5.00mm)
Height - Seated (Max): 0.492" (12.50mm)
Mounting Type: Through Hole
Lifetime @ Temp.: 1000 Hrs @ 105°C
Package / Case: Radial, Can
Packaging: Bulk
Status: Obsolete
