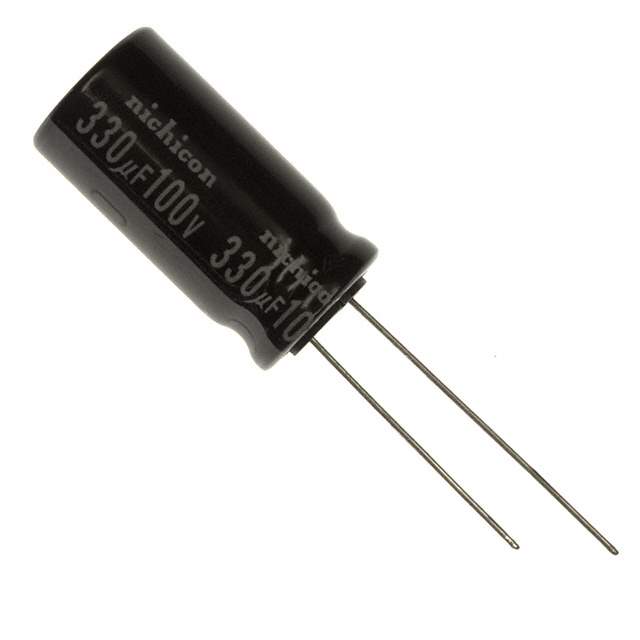

Same model may have multiple batches, images only for reference.

UVZ2A331MHD

Name: UVZ2A331MHD
Brand: Nichicon
SKU: 1137202
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVZ2A331MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 330UF 20% 100V RADIAL / 330 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVZ
Package	Bulk
Product Status	Not For New Designs
Capacitance	330 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	540 mA @ 120 Hz
Ripple Current @ High Frequency	810 mA @ 10 kHz
Lead Spacing	0.197" (5.00mm)
Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.063" (27.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Names	493-1378,Q3942690
Standard Package	800
Win Source Part Number	1137202-UVZ2A331MHD
Ultra Librarian 3D Model	Ultra Librarian UVZ2A331MHD CAD Model

Description

The UVZ2A331MHD is an aluminum electrolytic capacitor belonging to the UVZ series and manufactured by Nichicon.

Series: UVZ
Type: Aluminum Electrolytic Capacitor
Mounting Type: Through-Hole
Capacitance: 330µF
Voltage Rating: 100V
Tolerance: ±20%
Height: 1.063 inches
Diameter: 0.492 inches
Application: General-Purpose
