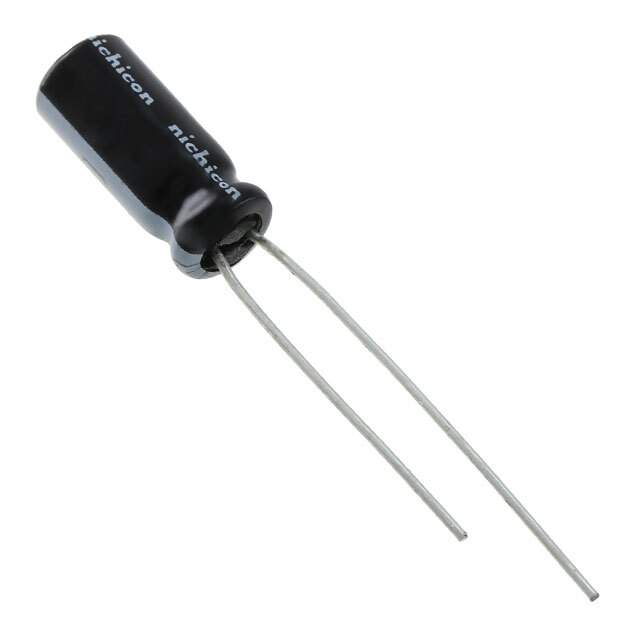

Same model may have multiple batches, images only for reference.

UVZ1H220MDD

Name: UVZ1H220MDD
Brand: Nichicon
SKU: 465627
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UVZ1H220MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 22UF 20% 50V RADIAL
Datasheet	UVZ1H220MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Packaging	Bulk
Status	Active
Capacitance	22μF
Tolerance	±20%
Voltage Rating	50V
Lifetime @ Temp.	1000 Hrs @ 105°C
Temperature Range - Operating	-55°C to 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current - Low Frequency	68mA @ 120Hz
Ripple Current - High Frequency	136mA @ 10kHz
Lead Spacing	0.079" (2.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Mounting	Through Hole
Dimension	Radial, Can
Win Source Part Number	1050384-UVZ1H220MDD
Popularity	Medium
Supply and Demand Status	Sufficient
Ultra Librarian 3D Model	Ultra Librarian UVZ1H220MDD CAD Model

Description

The Nichicon UVZ1H220MDD is a through-hole polarized capacitor with a capacitance of 22μF and a voltage rating of 50V.

Capacitance: 22μF
Voltage Rating: 50V
Lead Spacing: 0.079"
Height: 0.492"
Application: widely used in general-purpose applications
Known for: reliability and durability
Status: active
Popularity: medium
Supply and demand status: sufficient
