Same model may have multiple batches, images only for reference.

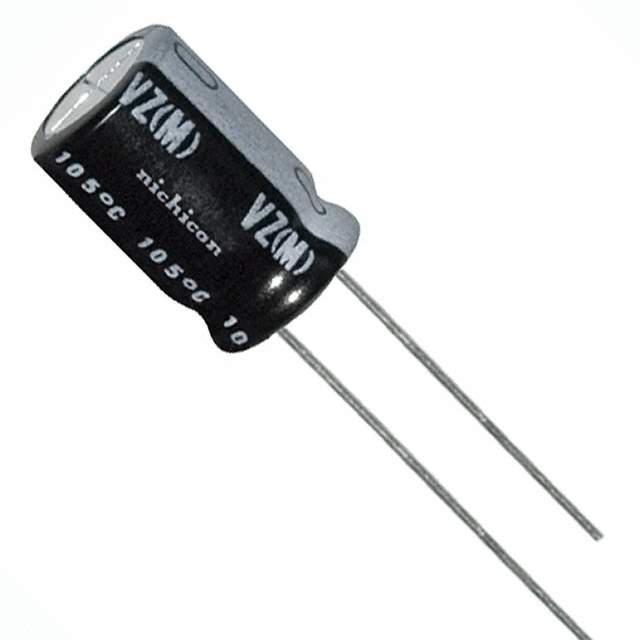

UVZ1E471MPD1TD Real Image
Same model may have multiple batches, images only for reference.

UVZ1E471MPD1TD

Part No UVZ1E471MPD1TD
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V RADIAL / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Nichicon
Packaging Cut Tape (CT),Tape & Box (TB)
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 380 mA @ 120 Hz
Ripple Current @ High Frequency 570 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.551" (14.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 493-13459-1,493-13459-3
Standard Package 500
Win Source Part Number 1328610-UVZ1E471MPD1TD
Ultra Librarian 3D Model Ultra Librarian UVZ1E471MPD1TD CAD Model

Description

Nichicon 1328610-UVZ1E471MPD1TD is an aluminum electrolytic capacitor with a capacitance of 470 μF and a voltage rating of 25 V.

  • Capacitance: 470 μF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Polarization: Polarized
  • Ripple Current (Low Frequency): 380 mA
  • Ripple Current (High Frequency): 570 mA
  • Height: 0.551 inches
  • Diameter: 0.394 inches
  • Operating Temperature Range: -55°C and 105°C
  • Lifetime: 1000 hours @ 105°C
  • Package: Radial Can
