Same model may have multiple batches, images only for reference.

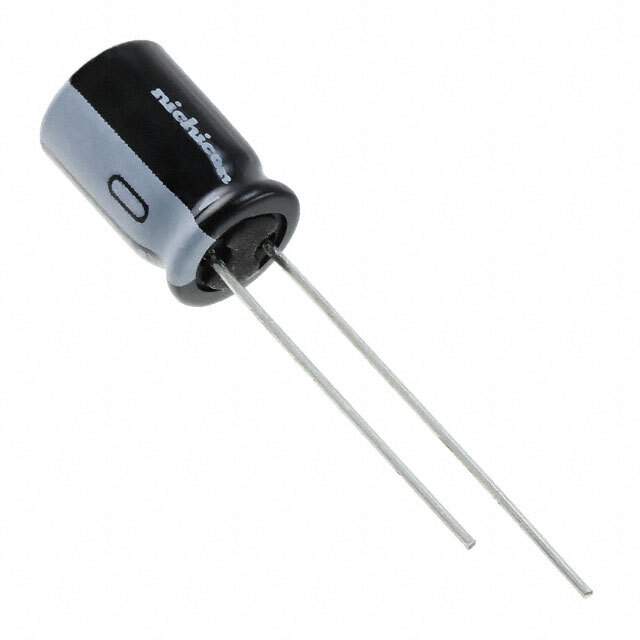

UVZ1C471MPD1TA Real Image
Same model may have multiple batches, images only for reference.

UVZ1C471MPD1TA

Part No UVZ1C471MPD1TA
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 16V RADIAL / 470 µF 16 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet
UVZ1C471MPD1TA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVZ
Package Cut Tape (CT) Tape & Box (TB)
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 16 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 315 mA @ 120 Hz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340324-UVZ1C471MPD1TA
Ultra Librarian 3D Model Ultra Librarian UVZ1C471MPD1TA CAD Model

Description

The Nichicon UVZ Series Capacitor is a high-quality component that is ideal for use in general purpose applications.

  • Capacitance: 470 µF
  • Tolerance: ±20%
  • Voltage Rated: 16V
  • Ripple Current: 315 mA @ 120 Hz
  • Lifetime: 1000 Hrs @ 105°C
  • Package: Radial, Can
  • Size/Dimension: 0.315" Dia (8.00mm)
  • Lead Spacing: 0.197" (5.00mm)
  • Height-Seated (Max): 0.512" (13.00mm)
