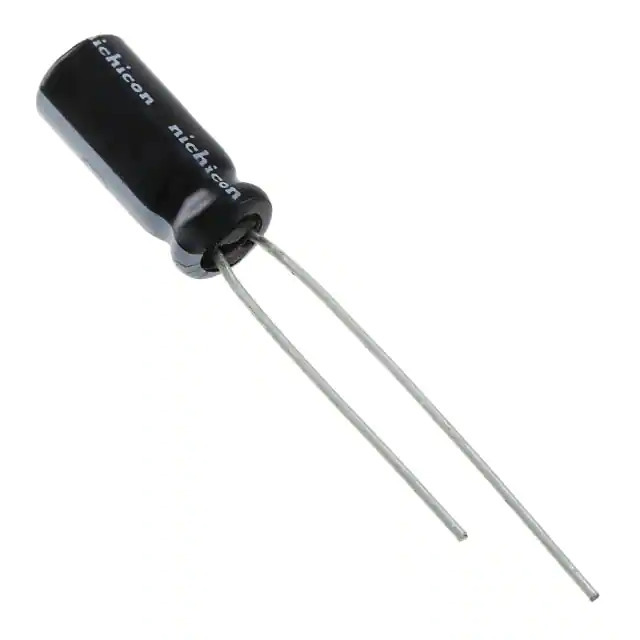

UVZ1A470MDD1TA Nichicon
Same model may have multiple batches, images only for reference.

UVZ1A470MDD1TA

Part No UVZ1A470MDD1TA
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 10V RADIAL / 47 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C
Datasheet
UVZ1A470MDD1TA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UVZ
Package Tape & Box (TB)
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 68 mA @ 120 Hz
Ripple Current @ High Frequency 136 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357871-UVZ1A470MDD1TA
Ultra Librarian 3D Model Ultra Librarian UVZ1A470MDD1TA CAD Model

Description

The UVZ1A470MDD1TA is a radial, can-type aluminum electrolytic capacitor from Nichicon's UVZ series.

  • Capacitance: 47 µF
  • Voltage Rating: 10 V
  • Application: General Purpose
  • Tolerance: ±20%
  • Temperature Range: -55°C to 105°C
  • Ripple Current: 68 mA @ 120 Hz, 136 mA @ 10 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Size/Dimension: 0.197" dia (5.00mm)
  • Mounting Type: Through Hole
  • Height: 0.492" (12.50mm) max
  • REACH: Not affected
  • ECCN: EAR99
