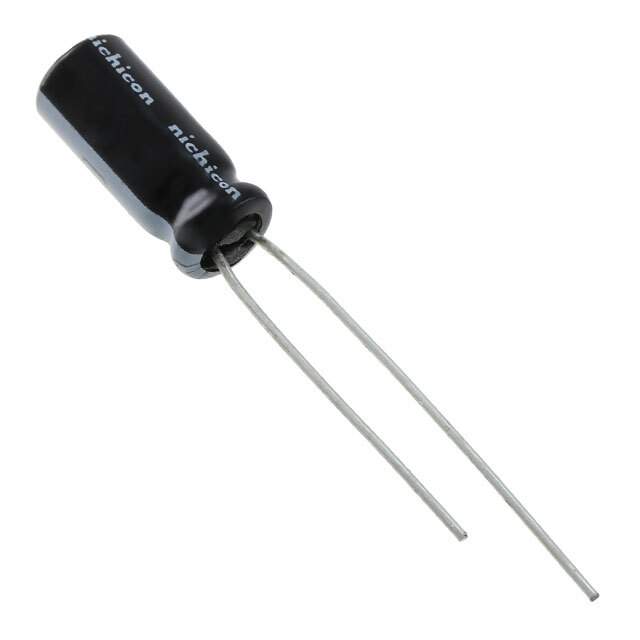

Same model may have multiple batches, images only for reference.

UVZ1A470MDD

Name: UVZ1A470MDD
Brand: Nichicon
SKU: 777871
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UVZ1A470MDD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 10V RADIAL / Cap Aluminum Lytic 47uF 10V 20% (5 X 11mm) Radial 2mm 68mA 1000h 105°C Bulk
Datasheet	UVZ1A470MDD Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Nichicon
Series	UVZ
Packaging	Bulk
Capacitance	47μF
Tolerance	±20%
Voltage Rating DC	10V
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature Range	-55°C ~ 105°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	68mA @ 120Hz
Ripple Current - High Frequency	136mA @ 10kHz
Lead Spacing	0.079" (2.00mm)
Dimension	0.197" Dia (5.00mm)
Height - Seated (Maximum)	0.492" (12.50mm)
Mounting Style	Through Hole
Package	Radial, Can
Win Source Part Number	777871-UVZ1A470MDD
Popularity	Medium
Supply and Demand Status	Limited
Family Name	UVZ
Introduction Date	September 12, 2003
ECCN	EAR99
Country of Origin	China, Japan, Malaysia
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian UVZ1A470MDD CAD Model

Description

The Nichicon UVZ1A470MDD capacitor is a high-quality component that offers a capacitance of 47μF and a voltage rating of 10V.

Capacitance: 47μF
Voltage Rating: 10V
Tolerance: ±20%
Temperature Range: -55°C to 105°C
Package Type: Radial, Can
Ripple Current: 68mA @ 120Hz
Ripple Current: 136mA @ 10kHz
Applications: General Purpose
Packaging: Bulk
Lead Spacing: 0.079" (2.00mm)
