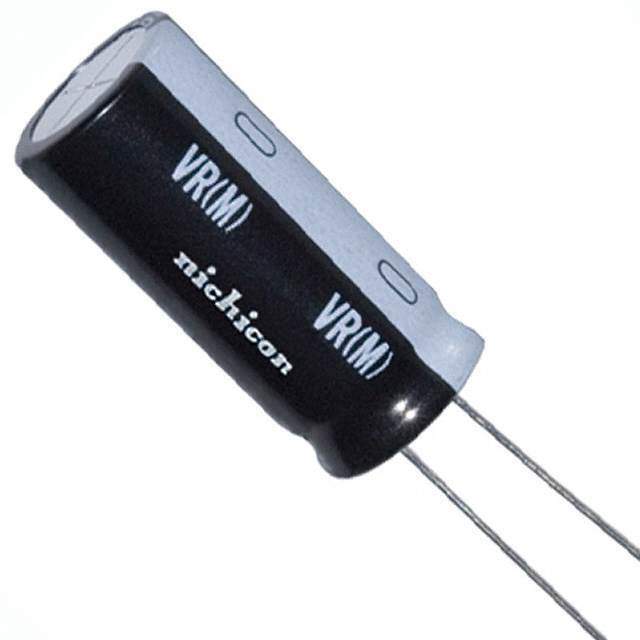

Same model may have multiple batches, images only for reference.

UVR2A102MHD

Name: UVR2A102MHD
Brand: Nichicon
SKU: 1338698
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVR2A102MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 100V RADIAL / 1000 µF 100 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVR
Package	Bulk
Product Status	Not For New Designs
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	100 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	1.38 A @ 120 Hz
Ripple Current @ High Frequency	1.587 A @ 10 kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1338698-UVR2A102MHD
Ultra Librarian 3D Model	Ultra Librarian UVR2A102MHD CAD Model

Description

The UVR is a series of aluminum electrolytic capacitors that are suitable for general purpose applications.

Package: Radial, Can
Standard Package: 200
Capacitance: 1000 µF
Voltage: 100V
Tolerance: ±20%
Lead Spacing: 0.295" (7.50mm)
Temperature Range: -40°C ~ 85°C
Ripple Current @ Low Frequency: 1.38 A @ 120 Hz
Ripple Current @ High Frequency: 1.587 A @ 10 kHz
Manufacturer: Nichicon
