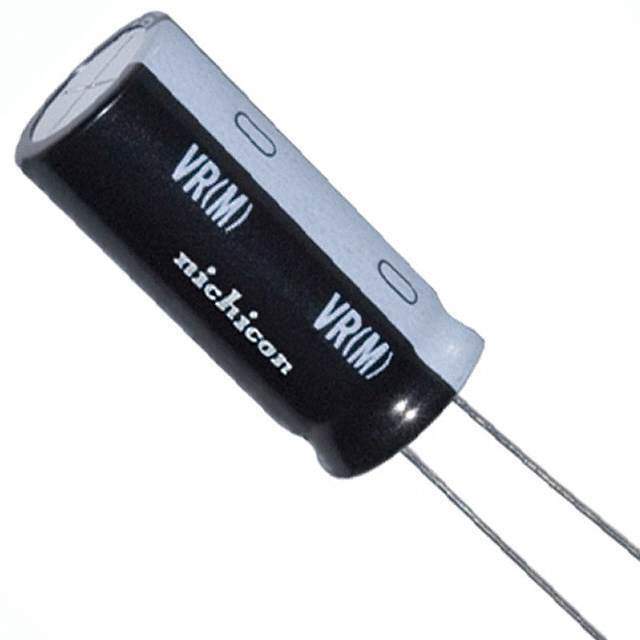

Same model may have multiple batches, images only for reference.

UVR1H472MRD

Name: UVR1H472MRD
Brand: Nichicon
SKU: 1336905
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	UVR1H472MRD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 4700UF 20% 50V RADIAL / 4700 µF 50 V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UVR
Package	Bulk
Product Status	Obsolete
Capacitance	4700 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	2000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.9 A @ 120 Hz
Ripple Current @ High Frequency	3.335 A @ 10 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.787" Dia (20.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	150
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1336905-UVR1H472MRD
Ultra Librarian 3D Model	Ultra Librarian UVR1H472MRD CAD Model

Description

The Nichicon UVR1H472MRD is an aluminum electrolytic capacitor manufactured by Nichicon with a capacitance of 4700µF and a voltage rating of 50V.

Application: General Purpose
Series: UVR
Package Size: 0.787" Dia (20.00mm)
Seated Height: 1.654" (42.00mm)
Tolerance: ±20%
Lead Spacing: 0.394" (10.00mm)
Lifetime: 2000 Hours @ 85°C
Polarization: Polarized
Mounting Type: Through Hole
Package/Case: Radial, Can
Ripple Current: 2.9 A @ 120 Hz (low frequency) and 3.335 A @ 10 kHz (high frequency)
Temperature Range: -40°C to 85°C
ECCN: EAR99 compliant
