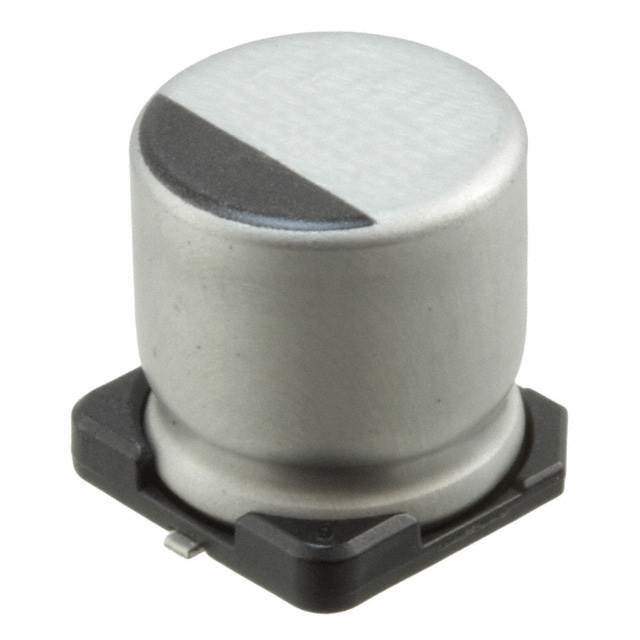

UUX1J101MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUX1J101MNL1GS

Part No UUX1J101MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 63V SMD / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UUX1J101MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UUX
Package Tape & Reel
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 320 mA @ 120 Hz
Ripple Current @ High Frequency 416 mA @ 10 kHz
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1336938-UUX1J101MNL1GS
Ultra Librarian 3D Model Ultra Librarian UUX1J101MNL1GS CAD Model

Description

The UUX1J101MNL1GS is an aluminum electrolytic capacitor that belongs to the capacitors category.

  • Series: UUX
  • Package: Tape & Reel
  • Size: 0.394" Dia (10.00mm)
  • Application: General Purpose
  • Height: 0.413" (10.50mm)
  • Standard Package: 500
  • Capacitance: 100 µF
  • Tolerance: ±20%
  • Voltage Rating: 63V
  • Lifetime: 2000 Hrs @ 105°C
  • Polarization: Polarized
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Mounting Type: Surface Mount
  • Package/Case: Radial, Can - SMD
  • Temperature Range: -55°C ~ 105°C
  • ROHS3 Compliant: true
  • MSL Level: 1 (unlimited)
  • REACH Unaffected: true
  • HTSUS Code: 8532.22.0020
  • Manufacturer: Nichicon
  • Ripple Current: 320 mA @ 120 Hz (Low Freq) and 416 mA @ 10 kHz (High Freq)
