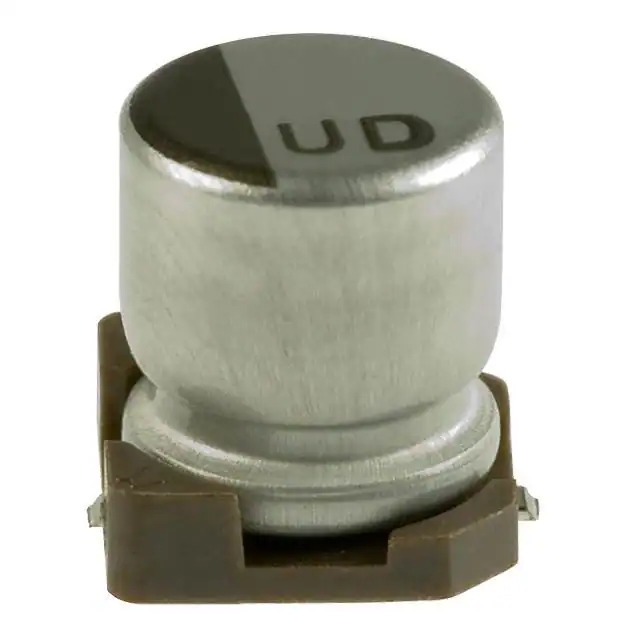

Same model may have multiple batches, images only for reference.

UUD1V150MCL1GS

Name: UUD1V150MCL1GS
Brand: Nichicon
SKU: 1360291
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UUD1V150MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 15UF 20% 35V SMD / 15 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UUD1V150MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUD
Package	Tape & Reel
Product Status	Active
Capacitance	15 µF
Tolerance	±20%
Voltage - Rated	35 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	75 mA @ 120 Hz
Ripple Current @ High Frequency	150 mA @ 100 kHz
Impedance	760 mOhms
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360291-UUD1V150MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UUD1V150MCL1GS CAD Model

Description

The 1360291-UUD1V150MCL1GS is an aluminum electrolytic capacitor manufactured by Nichicon. It belongs to the UUD series and has a capacitance of 15 μF with a tolerance of ±20%.

Series: UUD
Capacitance: 15 μF
Tolerance: ±20%
Rated Voltage: 35 V
Application: Automotive
Ripple Current (Low Frequency): 75 mA @ 120 Hz
Ripple Current (High Frequency): 150 mA @ 100 kHz
Package: Radial, Can - SMD
Mounting Type: Surface Mountable
Size: 0.197" diameter (5.00mm)
Height (Max Seated): 0.240" (6.10mm)
Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
Lifetime: 2000 hours @ 105°C
Polarization: Polarized
Impedance: 760 mOhms
Product Status: Active
REACH Status: Unaffected
