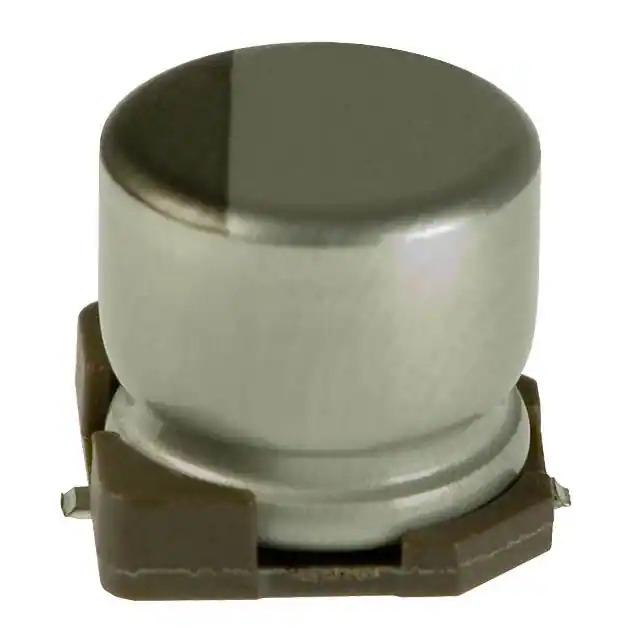

Same model may have multiple batches, images only for reference.

UUD1E330MCL1GS

Name: UUD1E330MCL1GS
Brand: Nichicon
SKU: 1360309
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	UUD1E330MCL1GS
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 33UF 20% 25V SMD / 33 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet	UUD1E330MCL1GS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	UUD
Package	Tape & Reel
Product Status	Active
Capacitance	33 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	115 mA @ 120 Hz
Ripple Current @ High Frequency	230 mA @ 100 kHz
Impedance	440 mOhms
Lead Spacing	-
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.240" (6.10mm)
Surface Mount Land Size	0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1360309-UUD1E330MCL1GS
Ultra Librarian 3D Model	Ultra Librarian UUD1E330MCL1GS CAD Model

Description

The Nichicon 1360309-UUD1E330MCL1GS is an aluminum electrolytic capacitor from the UUD series.

Manufacturer: Nichicon
Product: 1360309-UUD1E330MCL1GS
Series: UUD
Capacitance: 33µF
Voltage Rating: 25V
Tolerance: ±20%
Application: Automotive
Ripple Current @ 120Hz: 115mA
Ripple Current @ 100kHz: 230mA
Mounting Type: Surface Mount
Package: Radial, Can - SMD
Size: 0.248" Diameter
Height: 0.240"
Lifetime: 2000 Hours @ 105°C
AEC-Q200 Rated: Yes
REACH: Unaffected
Polarized: Yes
Impedance: 440mOhms
